High Speed Automatic Iron Nails Making Machine Price in Pakistan

Product Description

Direct Machine Manufacturer Automatic Common Iron Wire Nails Making Machine
My contact Way
Contactor: Echo Shi
Our Factory
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995.
Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.
27-Years Manufacturer for nail machines and wire drawing machines.
Time proves we are a professional factory with stable quality and competitive price.
We provide one-stop service from design to installation.
Nail Making Process

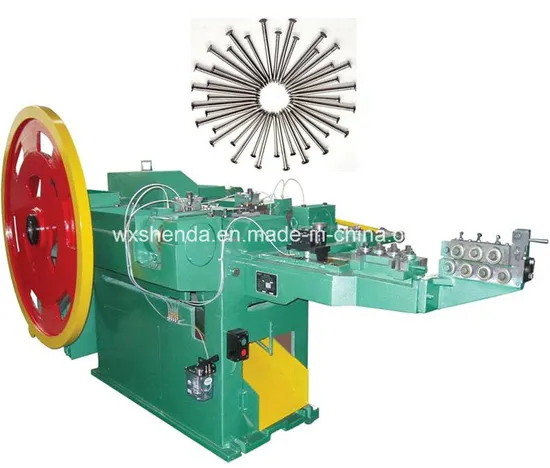

Nail Making Machine Z94-4C
This new generation Z94-4C nail making Machine can make nail length 2"-4" and nail diameter 4.5mm-2.8mm.
It adopts plunger type structure to ensure the high speed, low noise, less blunt acoustic.It has advanced
design, compact structure, beautiful appearance, easy operation, safety and other features.
It is popular among our customers, with stable quality and reasonable price

Model:	Z94-4C
Diameter of Nail	4.5-2.8mm
Length of Nail	2"-4"
Designed Capacity	280pcs/min
Motor Power	4kw
Weight	2000kg
Overall Size	212x154x159cm

Wire drawing machine
Wire drawing machine is ideal equipment to draw raw steel wire.
Most of the time, it is important for nail making line.
It can draw high medium low carbon steel wire from 6.5mm to 0.75mm.
The whole process from feeding wire to outlet wire can be finished in one time and only one worker can operate.
You can choose the model based on following specifications of wire drawing machines:

Item	Continuous Multi-block Type
Model	LW- 1-6/ 560	LW-1-7/450	LW-1-6/350
Tensile strength of wire rod	110kg/mm2	128/mm2	140/mm2
Max. dia. of wire rod	6.5mm	3.4mm	2.5mm
Min. dia. of wire wire	2.5mm	1mm	0.75mm
Typical configuration	LW1- 6/560	LW1-7/450	LW1-6/350
Max. average reduction	30%	20%	21%
Designed total reduction	78-88.5%	77.9%	78%
Max. speed of block	245 m/min	346.9 m/min	200 m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw
Weight	2000	1500	1000
Overall dimensions(LxWxH)	170x115x175cm	152x81x170cm	140x80x150cm

Our service:
Your concern is our concern!Your win is our win! We expect double-win!
Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
After-sales service:
1 years quality guarantee, Life-long Maintenance
