Industrial Warehouse Inflatable Dock Seals Retractable Insulated Dock Shelters

Product Description

Product Description
>> Product Show

Material Description
W	3400mm,3500,3600mm
H	3500mm,3600mm,3700mm
Side door curtain	W630mm
Top curtain	Standard configuration is 1000mm, 1200mm and 1500mm are available, and adjustable curtain structure can also be used.
Non-standard size	Can be customized and processed according to customer needs To ensure the matching of the ordered products, please provide details of the compartment dimensions of commonly used freight vehicles rather than door opening dimensions.

>> Product Advantages Dock Shelters are enclosures that seal the perimeter of the trailer to form a seal. This is accomplished
by applying pressure against the sides of the trailer with fabric curtains fitted with fiberglass stays.
A dock shelter closes the gap between the building wall and the truck by sealing the top and sides
and or back of the transport vehicle, essentially creating an entension of the warehouse.
- Dock shelters options
A. Mechanical dock shelter (retractable dock shelter)
Application Features1.lt can cooperate with more vehicle types and requires less wall load-bearing capacity of the building.
2.Multiple choices that can meet your special needs.
3.Retractable frame structure.
Side and top PVC curtains
1.The side and top curtain is made of imm thickness
PVC fabric. The weight is 750g/m .
2.Breaking strength: 4000/4000 N/5cm
3.Tear strength: 580/500 N
Scalable Framework
The dock shelter is made of galvanized steel whose cross section is 60*30mm.The front and the back
frame are connected by retractable rod.It can retract when the truck is pushing and go back to origin
when the truck leaves.
Positive PVC curtains
The front curtain is made of 3mm thickness PVC sheet.It has double reinforced nets inside.It has
excel-lent crash resistance,flexibility and corrosion resistance performance.
Top curtain height:1000mm
Side curtain width:700mm
B. Insulated Sponge dock sheleterThis type is closed by the entrusion of the vehicle, it can realize effective seal and thermal insulation,
fits for the vehicles with same or similar sizes.
1.Suitable for door shelter applications which have strict requirements for insulation,the same vehicle type and more wall load-bearing capability.
2.We offer wide variety of Dock Seals design to suit different sizes of vehicle,
such as:non-adjustable,adjustable,curtain hanging type,inflatable type etc.
3.There are self-extinguishing PVC curtains function, weight 800 g/m2,and on both sides of the dock seal has
added pleated blinds can withstand lasting wear compression;
3.Electroplated steel liner or wood preservative liner,completely fit the wall inside the door seal compression sponge filled with high density of 30KG cubic;
4.liner sectional dimensions:300mm×300mm;
C. Inflatable dock shelter 1.It can cooperate with trucks of different size with good insulation effect.It is suitable for the applications
which requires strict temperature scope,long docking process duration or the cold storages.
2.It consists of 2 side inflatable PVC fabrics and 1 top inflatable PVC fabric.Air inflation should be done by air
blower 3 phase,380V.There is weight recovery unit inside that realizes opening and closing.
3.Inflation time:15 seconds Close time:15 seconds

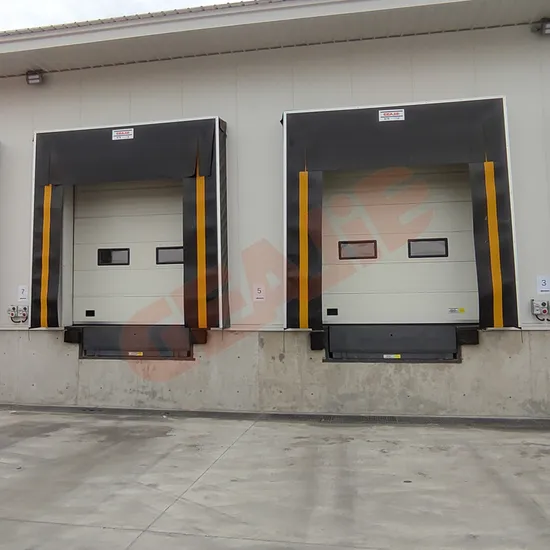

>> Project Case Of Dock Shelter
>> Dock Leveler
Company Profile
>> Company Informations
Q1: What is your MOQ?
A: 1set is OK.
Q2: What is the max available size of the doors?
A: The max length can be 6.5M. The max width is 6M, adjustable.
Q3: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce sliding doors, rapid doors, garage doors, rolling shutter doors, cold storage
doors, loading and unloading platforms, door seals, and car locks, industrial fans and other series
of products. We produce parts by ourselves in order to control quality and cost.
Q4: How to install your product, is it difficult?
A: Very Easy to install.
Q5: Which place will use the dock leveler?
A: Factory outlet, Outgoing port of logistics park.
Q6: What's effect of dock leveler?
A: Improve the efficiency of cargo handling, easy to unloading and loading goods.
