Horizontal Directional Drilling Machine Xz450

Product Description

Horizontal Directional Drilling Rig HDD Machine with Drill Rod Xz450
Product Description 1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, Piston Motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
Technical Parameters

Project		Parameter
Engine	Unit
Type	-	6CTA8.3-C260
Rated power	(kW/r/min)	194/2200
Thrust-Pull
Max thrust-pull force	(kN)	480
thrust-pull speed	(m/min)	38
Rotation
Torque	(N·m)	23500
Max spindle speed	(r/min)	135
Mud pump
Max Flow rate	(L/min)	450
Max pressure	(MPa)	8
Pipe	(mm×m)	φ89×4.5
Loader Crane
Lifting weight	(t)	2
Loading capacity	(t•m)	4
Max inclination angle	(°)	20
Max backreamer diameter	(mm)	φ900
Weight	(t)	13.3
Dimension	(mm)	8800×2280×2610
Remark		Optional:I.Cab;II.Air-condition;III.Full-automatic pipeloader;IV.Semi-automatic pipeloader;V.Mud

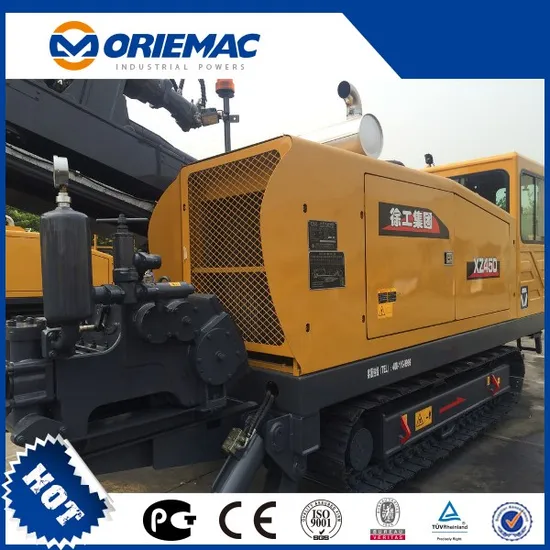

Product Pictures
