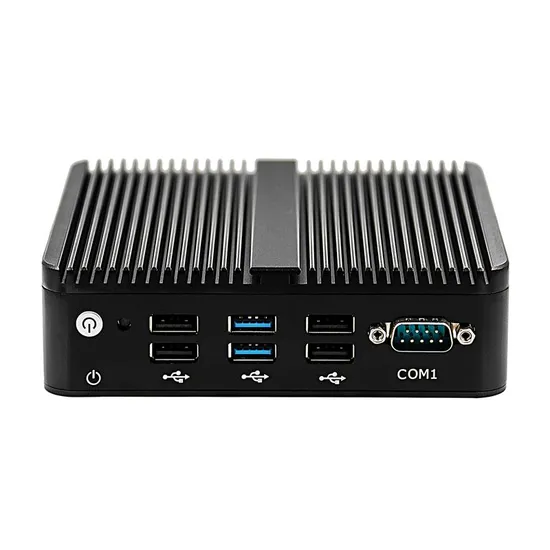

Factory Intel Alder Lake N100 4LAN 6USB Industrial Fanless Nano Mini PC

Product Description

Industrial Mini Computer PC Win 11 Fanless: A robust and compact intel n100 desktop with 4 LAN ports and 6 USB ports, setting a new standard in performance and versatility.
Main Products Feedback Product Description Features:
Powered by Intel J4125/J6246/N100 processors, this mini PC ensures swift and efficient performance.
Equipped with 1 RS-232 serial port for enhanced connectivity.
Incorporates 4x Intel i210/i211 Gigabit LAN ports to meet high-speed networking needs.
Innovative features like one-key restore, watchdog, and diskless boot ensure seamless operation and reliability.
Designed for low power consumption with a fanless architecture, delivering silent and efficient performance.

PC
CPU	Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.7GHz, Fanless
Optional	Intel® Celeron J6246, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.0GHz, Fanless
Optional	Intel N100, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.4GHz, Fanless
Memory	1x DDR4 SODIMM slot, supports up to 8GB
Storage	1x MSATA 1x HDD/SSD
Display	1x HDMI
Network	4 x GbE RJ45 Intel i211/i210i210
I/O	2x USB3.0, 4x USB2.0, 1x DB9 COM, 1xHDMI, 1x Power LED, 1x HDD LED, 1x Power Button, 1x Reset Button, 1x Power input, 1 x SIM Card Slot, 2 x Antenna port, Be used for WIFI/3G/4G, 4xLAN
Expansion Slot	Mini-pcie x1, Full card, Onboard SIM card slot, Support 3G/4G module, WIFI Bluetooth
BIOS	AMI EFI BIOS
WDT	Support hardware reset (256 level, 0-255 sec)
Operation System	Windows® 10, WES 10, LINUX
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤20W
Enclosure
Material	Aluminum Alloy
Color	Black
Operating Environment
Temperature Range	Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow
Relative humidity	10%~95% , non-condensing
Packing Details
Net weight	1 kg
Gross weight	2 kg
Product Dimension	135 x 127 x 38.7 mm
Packing size	30*20*12cm
Accessories	Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Other
Mounting (options)	Wall mounting
	Desktop installation
Warranty	3 years warranty
