CNC High Speed Multi Station Tool Post and Turrets Turning Machine

Product Description

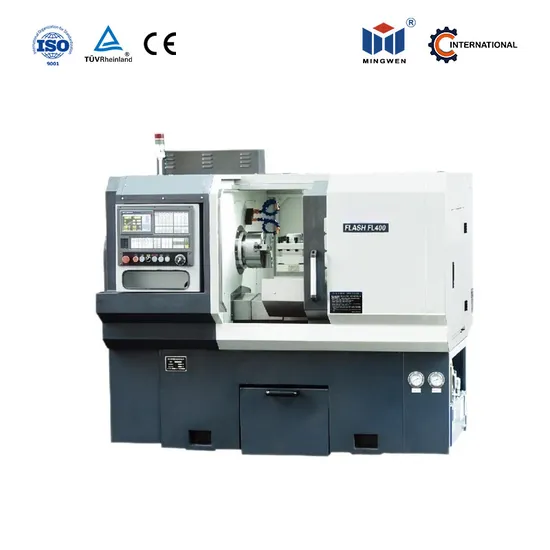

Appearance of the machine
Description and advantages
This series allows high flexibility in tooling configurations. A wide range of gang type, turret, milling and polygon tools can be combined to fit your specific part production task. Complete bi-laterally symmetrical machine body and headstock design increases rigidity and stiffness in all movements of the machine. An added feature bonus is the compact dimensional casting, which keeps advanced performance in a smaller footprint. The FL400 flat bed CNC gang tool lathe packs a load of capacity into a small foot print. This provides plenty of capacity to mount and position a large number of seperate gang blocks with tools. It also works great for applications that require live tooling.
Advantages:
---Linear guideways are protected by stainless steel telescoping guards--provides maximum protection from chips and coolant and extended machine life.
---Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo.
---Center mounted ball screws are placed between the bed ways, minimizing side torque and friction. Provides cooler operation, better dynamic efficiency and longer life.
---Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.
Standard Features

Manual 3-Jaw Chuck (FL400+) Pneumatic Collet (FL280, FL300) Gang Type Tooling (For Swing < 400mm) 4-Station Tool Post + Gang Plate (For Swing > 400mm) Ergonomic Operator Panel Design Automatic Lubrication System Automatic Coolant System Built-In Safety Features
Optional Features

Updated Chucks Updated Spring Collets Updated Control Systems Live Tooling Bar Feeder 8-Station Turret (Available on FL300/ FL400/ FL500/ FL550/ FL630) Main frame

Parameters

Specifications		Unit	FL400
Capacity	Chuck/collet	type	Manual chuck 8"
			*Hydraulic collet,* chuck 6"
	Bed type/guideway		Flat/LM
	Max. swing dia. over bed	mm	φ400
	Max. Length of work piece	mm	320
	Max. swing dia. over slide	mm	φ180
Spindle	Spindle bore	mm	φ62	φ48
	Max. dia of through hole	mm	φ52	φ40
	Spindle nose		A2-6	A2-5
	Spindle speed	rpm	2000 *4000	3000 *4500
	Spindle motor power	kW	5.5/7.5
Axis	X/Z travel	mm	380/350
	X/Z rapid traverse	mm/min	20/20
Tool post	Type		4-station tool post
			*8-station turret
			*Gang type tooling
	No. of tool stations	No.	4-10
Others	Power capacity	kWA	11
	Dimensions (L*W*H)	mm	1950*1250*1620
	Weight (about)	kg	2000
