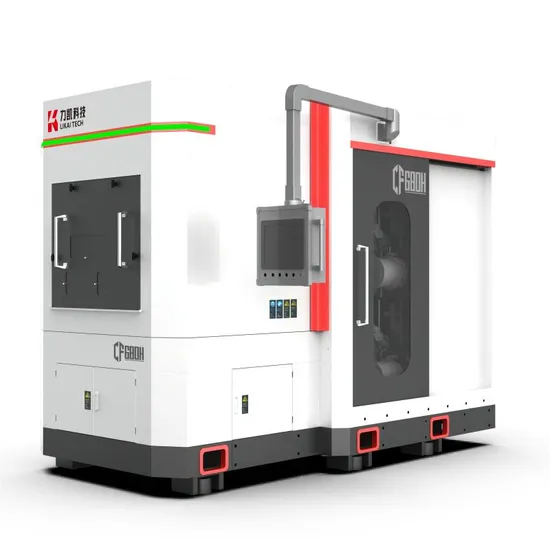

CF680H Multi-wire Saw
CF680 Multi-wire Saw is mainly used for street slicing of Rare Earth Premanent Magnet, Quartz Crystal, Optical Glass, Precious Metal and other hard and brittle materials. The machine adopts whole casting structure, equipped with double stations and four rollers direct drive structure, having the advantages of high wire speed, high efficiency and high accuracy.
Product Features
>High Cutting Efficiency
The machine adopts double station design and is able to cut two plates materials at the same time, which greatly improves the working efficiency.
>Whole-casted Frame
The whole casting structure has high damping coefficient and excellent vibration damping performance.
>Stability
The stable base provides the basic conditions for the application of high wire speed, fine wire and tolerance requirements.
>Optimized Pulley System
6 pulleys design can reduce diamond wire torsion and tension fluctuation. It can reduce wire breakage rate and improve cutting accuracy.
>Light Pulley Design
Using light pulley to reduce the moment of inertia, reduce the torsion and tension fluctuation of diamond wire, and meet the service conditions of high wire speed and fine wire.
>Easy Wire Winding
The wire pay-off wheel adopts the standard universal spool (PV600 reinforced I-wheel), and it's no need to rewind.
>Stable Wire Web Control
The rollers and wire spools adopt cone-positioned structure with high accuracy and high rigidity to control wire web shaking.
Cut Samples

Product Parameters

Detail	Parameter
Model	CF680H
Maximum work size	160x680x160mm
Workbench quantity	2
Roller out diameter *Workable width	(Φ170±10)*690mm*4 rollers
Wire diameter	φ0.10mm-φ0.25mm
Wire spool storage	40km(φ0.20mm)
Maximum running speed	2400m/min
Travel of table	245mm
Cutting method	Vertically upward movement
Cutting feed speed	0.1-99.9mm/min
Fast feed speed	250mm/min
Cutting fluid	Water-based cutting fluid or cutting oil
Fluid storage	800L
Fluid flow rate	200L/min
Power supply	Three-phase 380V 50Hz
Power	100Kw
Air supply	Adopting water-based cutting fluid, the air pressure≥0.4 MPa.
Size L*W*H	3330mm*2220mm*2550mm
Weight	9500Kg

About Us
FAQ
1. What Materials Could The Multi-Wire Saws Cut?
Our multi-wire saws can cut all kinds of hard and brittle materials such as Sapphire, Quartz Crystal, Optical Glass, Magnets, Ceramics, Silicon Wafers, Silicon Carbide, Precious Metal, etc.
2. What's The Size Range Of The Cut Product?
The maximum diameter of the cut material is up to 1000mm.
The minimum thickness of the wafers after cutting is 0.1mm.
3. What's The Cut Accuracy Of Multi-Wire Saws?
±10μm. It's subject to the cut material, please consult us for actual data.
4. Can I get a sample?
We provide test cut service to you, free of charge. Please send your material and test requirements to us.
5. Which Countries The Equipments Have Been Exported To?
The USA, UK, Russia, Japan, Brazil, Korea, India, Singapore, Taiwan of CHINA.
