Hot sale Threads mini bench type Drilling milling machine
| US$1,000.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VM32
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Pallet or Ply Wood Case
Specification
860*710*1020
Trademark
Hercules or OEM
Origin
China
HS Code
8459699000
Production Capacity
2000sets/Month
Product Description

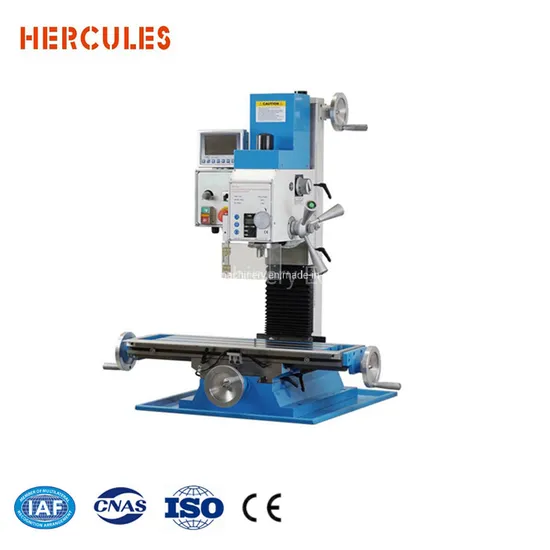

CE high precision bench type drilling & milling machine
1) Specification
| Max. Drilling dia. | mm | 32 |
| Max.end milling capacity | mm | 20 |
| Max.face milling capacity | mm | 76 |
| Table size | mm | 700 x 210 |
| Table travel | mm | 400 x 200 |
| T-slot | mm | 3 x 14 |
| Spindle taper | MT3/R8/ISO30 | |
| Spindle travel | mm | 70 |
| Spindle speed range | r/min | 50-2250 |
| Spindle speed step | Variable | |
| Distance from spindle nose to surface of table | mm | 210 |
| Distance from spindle nose to table | mm | 470 |
| Main motor power | kW | 1.5kw(Brushless motor) |
| Machine dimensions | mm | 860*710*1020 |
| Machine weith | kg | 220 |
2) Machine details:
3)Standard and Option accessories
2 Axis DRO
Digital depth ruler
Spindle cover with micro switch
Drill chuck 3-16/B16
Draw bar
Arbor MT3/B16-M12
Stand
