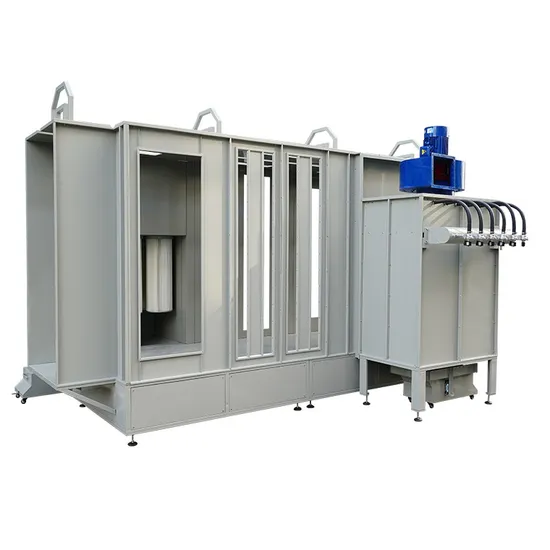

Automatic Conveyor Powder Coating Booth System for Aluminium Profiles
This automatic conveyor powder coating booth is an ideal selection for single color application in automatic powder coating line. Double stage of filters are directly connected to the booth wall, and the automatic floor cleaning reduces the powder accumulation to a minimum. Our automatic powder booth maximizes powder recycling rate and creates cleaner working condition. Detailed Photos
Automatic Conveyor Powder Coating Booth Features
100% Polyester filters
Size: D325xH900mm per piece. Colo's powder booths uses only the highest quality filters made from 100% polyester, whose filtration less than 0.1 micrometer, well separates the powder from the air. Each filter will get interval pulse-jet cleaning controlled by valves, which will extend its life.
PLC Control unit
Colo's control unit have many program. Different bottom correspondence different function. Control the fan on/off, adjust time range of the pulse to cleaning filters, make the recovery powder hopper up and down.
Fan Motor
In Booths manufactured by Colo we use aluminium fans which are safe, doesn't cause sparks when rubbing by metal elements which in case of using metal fan can cause explode.And they are very quiet, work at the level of 74-79dB. Fan is installed at the top of filter room that saves factory space.
Powder Collector
There is a powder recovery hopper beneath the booth that collects oversprayed powders, equipped with 2pcs of powder recovery pump that automatically transfer the powders to the powder feed center for re-utilization.
Specifications
Automatic Conveyor Powder Coating Booth Specifications

Model	COLO-0825
Booth Type	Filter type
Operator dimensions	Width800 * Height2000 * Depth4000mm
Overall dimensions	Width1200 * Height2580 * Depth5000mm
Power supply	Electric
Nominal power	3.5kW
Voltage	220V/380V
Frequency	50-60Hz
Filters	Polyester
Filters count	12
Filters hang type	easy for change
Filter cleaning system	Pneumatic

Customer cases
Our robust powder coating booth is designed to deliver best productivity and application quality in automatic production line, synchronously working with powder coating reciprocator, tailored automatic guns & control cabinets, conveyor system.
Customers Reviews
Related Models
Automatic Reciprocator & Powder Mannagement Center & Automatic Powder Coating Gun System
Automatic reciprocators is a important parts of a automatic powder coating line,it is work with severals electrostatic powder coating guns
Powder management center make continuously, uniformly, quantificationally feed the powder to the spray gun, improve application quality and makes sure only quality powders are recyled, increase powder utilization.
Automatic powder coating gun system is a central control cabinet combines all gun controller for integrated operation, enbles to set parameters only at one host unit to control whole system.
