Plastic Recycling Machine/PP PE Film Bag Recycling Line
| US$50,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZL-160/140
Raw Material
PE
Screw
Double-Screw
Inverter
Inverter
Electromagnetic Heater
Electromagnetic Heater
Automation
Automatic
Computerized
Computerized
Customized
Customized
Certification
CE
Condition
New
Transport Package
Film Package
Specification
10700*14000*3000
Trademark
RILI
Origin
Made in China
HS Code
8477201000
Production Capacity
200 Sets/Year
Product Description
Plastic Recycling Machine/PP PE Film Bag Recycling Line| Item | Name | Qty |
| 1. | ZL-160/140 PE/PP FILM Water Stand Pelletization Line(Motor: 90kw&45kw) | 1 set |
| 2. | Conveyer belt | 2 sets |
| 3. | Crusher | 1 set |
| 4. | Silo with blower | 1 set |
| 5. | Force feeder | 1 set |
Specification for each equipment:
| Model | ZL-160/140mm |
| capacity | PP PE film 250-300KG/H , hard 400KG/H |
| Power supply | 3Phase/380V/50HZ (can be your request) |
| Conveyer belt | 3000*400*600mm motor 0.75KW |
| Screw feeder | 3000*400*600mm motor 0.75KW |
| Force feeder | Size :1000mm*800mm motor :1.5kw with inverter |
| Gear box | 315# Gear Box made by Jiangsu Guobang brand. |
| 200# Gear Box made by Jiangsu Guobang brand. | |
| Screw | diameter:160mm length :3200mm material :38Cr cast alloy with vent L/D 20:1 |
| diameter:140mm length :1400mm material :38Cr cast alloy with vent L/D 10:1 | |
| Driving system | Motor :90KW speed r/m:960 Inverter: 90KW |
| Motor :45KW speed r/m:960 Inverter :45KW | |
| Filter system | Double Screen filter, Hydraulic Change Screen,Filter Size :250mm*250mm Hydraulic motor :3kw ,heating power :15kw |
| Screen filter, Hydraulic Change Screen,Filter Size :200mm*200mm Hydraulic motor :2.2kw ,heating power :10kw | |
| Control box | 8 zones/4zones |
| Cooling system | Size :3000*400*600mm material :stainless steel |
| Drying system | Strong blower |
| Cutter system | Hob cuter machine(speed can be control) cut size :3-4MM motor :3.0KW |
| Silo (Optional) | 300KW, with feeding blower |

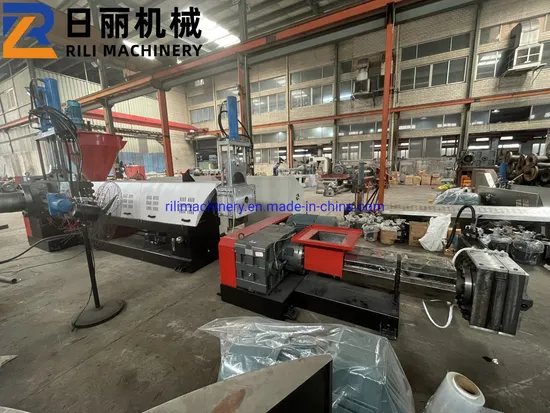

Machine Pictures:
