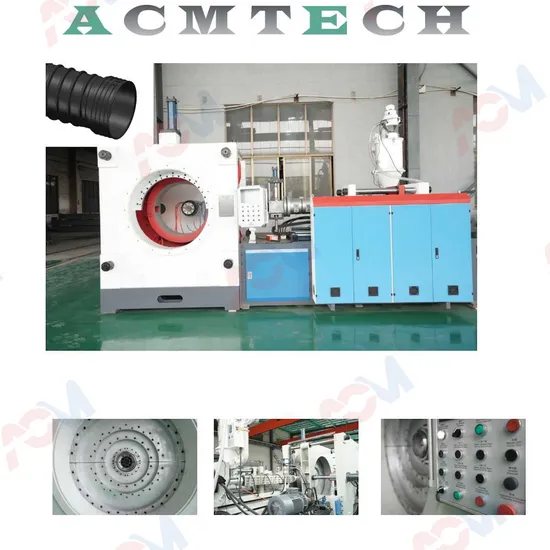

SOCKET MACHINE FOR STRUCTURED WALL PIPE
This complete set of equipment is used for socketing and belling on structured wall pipes such as PE spiral pipes, plastic steel spiral drain pipes, reinforced PE corrugated pipes.
This resolves the problems caused by flexible connection, it is a more reliable connection way without any leakage, also it's a fast connection way and easier installation, and greatly reduces installation cost.
This equipment adopts extrusion + injection method, after spiral pipes offline, one or two extruders are used, equipped with suitable molds, which can quickly ensures the sockets and bellings finished well.
РАСТРУБНАЯ МАШИНА ДЛЯ ПОЛИМЕРНЫХ ТРУБ СО СТРУКРИРОВАННОЙ СТЕНКОЙ
Этот полный комплект оборудования используется для изготовления сокета и раструба на дренажных полимерных трубах со структурированной стенкой, таких как PE спиральновитые трубы, гофрированные армированные трубы. Это решает проблему, вызванную гибким соединением, это более надежный способ соединения без утечки, также осуществует быстрое соединение и простоту установки, и значительно снижает расходны на их монтаж. Используя метод экструзии +литьевого формования, после изготовления труб со структурированной стенкой с помощью одного или двух экструдеров, оснащенных подходящими формами можно быстро выполнить хорошее изготовление сокета и раструба на трубах.
It is used for injection molding of socket or electric fusion joint of steel belt reinforced pipe, hollow wall pipe, inner rib pipe, carat pipe and other plastic drainage pipes. The whole system covers sizes from DN200 to DN1200. The standard model has the characteristices of compact structure, high efficiency and energy saving. It adopts the principle of high pressure and quick injection to quickly fill the cavity, which is more suitable for PE/PP adhesive with low FMI. Under the premise of ensuring the ring stiffness, the wall thickness can be effectively reduced and lighten product weight.
There are many ways to connect municipal plastic drainage pipe. The long term practical application have proced thar, no matter from manufacture or construction convenience, the high-speed and pressre injeciton-mold socket has obvious advantage over other methods.
PE and PP over-molding socketing machine is suitable for the most of drainage pipes in the market. With one high volume injection unit, only by change the molds, the machine can achieve difference sizes of socket and spigots. A machine will multi-usage can reduce investment and reduce the cost of post processing.
Detailed Photos
Product Parameters
Specification
Спецификация

Model Модель	Max. Injection(g) Макс. объем впрыска	Pipe diameter(mm) Диаметры труб (мм)	Control system Система управления
ACK500	5000	Φ200-500	PLC + HMI
ACK800	10000	φ300-800	PLC + HMI
ACK1200	20000	Φ300-1200	PLC + HMI
