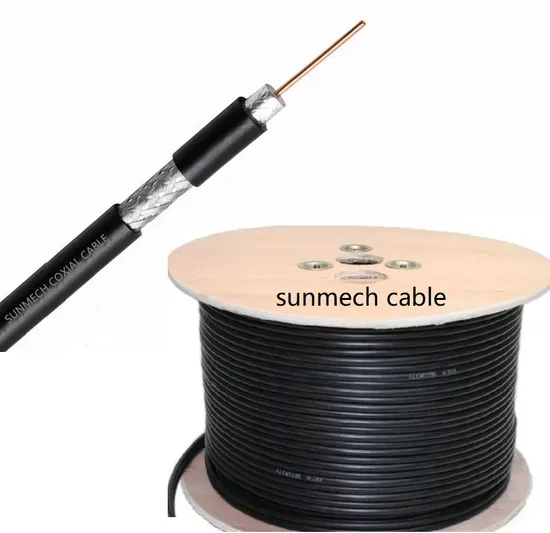

Rg58 Rg59 with Power CATV/CCTV Cable 75ohm Rg11 Kx6 Communication Data Cable RG6 Coaxial TV Cable

Product Description

IMPEDANCE: 75Ohm ± 2Ohm
NOMINAL CAPACITANCE: -51.2 pF/m ± 2 pF/m
VELOCITY RATIO: .87% ± 4%
SCREENING EFFICIENCY: 0-3150MHz > 85dB
STRUCTURAL RETURN LOSS: -0-1000 MHz > 24dB
1000-3150 MHIz > 23dB .
Terms: 1.OEM is welcomed
2.ISO/CE/ETL/ROHS/UL/SONCAP and other certifications are available
3.Competitive price and high quality offered.
4. Best service for you!
RG6U DIFFERENT SHIELD

Procuct Construction		STANDARD SHIELD	TRI-SHIELD	QUAD-SHIELD
CONDUCTOR	MATERIAL	BC/CCS	BC/CCS	BC/CCS
	Nom.Dia.	18AWG	18AWG	18AWG
DIELECTRIC	MATERIAL	Foam PE	Foam PE	Foam PE
	Nom.Dia.	4.57mm	4.57mm	4.57mm
SHIELD	MATERIAL	Al Foil+Al Braiding	Al Foil+Al Braiding+Al Foil	(Al Foil+Al Braiding)*2
	COVERAGE	40%-95%	40%-95%	40%-60%
JACKET	MATERIAL	PVC/PE	PVC/PE	PVC/PE
	Nom.Thick.	0.80mm	0.80mm	0.86mm
	Nom.Dia.	6.91mm	7.06mm	7.62mm
MESSENGER	MATERIAL	Galvanized steel wire
	Nom.Dia.	1.30mm	1.30mm	1.30mm

Nominal Impedance(ohm)		75±3
Nominal Velocity of propagation(%)		85
Nominal Capacitance(pf/m)		50
Spark Test(VAC)		3000
SRL(dB)		20	20
Attenuation [68°F(20ºC)]	Frequency(MHz)	Maximum(dB/100ft)	Maximum(dB/100m)
	5	0.58	1.9
	55	1.6	5.25
	187	2.85	9.35
	300	3.55	11.64
	450	4.4	14.43
	600	5.1	16.73
	750	5.65	18.54
	865	6.1	20.01
	1000	6.55	21.49

Products Construction
Item	RG58	RG59	RG6	RG7	RG11
Inner Conductor(mm)	0.5	0.81	1.02	1.29	1.63
Dielectric(mm)	2.9	3.66	4.57	5.72	7.11
Shisld(mm)	3.15	3.84	5.4	5.9	7.29
Jacket(mm)Standard-Shield	5.1	6.1	6.9	8.1	10.16
Jacket(mm)Tri-Shield	5.2	6.2	7.06	8.2	10.16
Jacket(mm)Quad-Shield	5.74	6.73	7.54	8.64	10.34

Coaxial Cable Packing :
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil. 30Yard Coil, 60YardCoil, 100Yard/Coil.
2). Reel With Pallet or Not
100MPaper Reel
100MPlastic Reel, 200M Plastic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel in Box.
1000ftReel in Box.
Color Box and OEM Package available.
20" Contaner Fu1l Load: 350-420km.
40" Container Full Load: 650-780km.
Communication satellite cable TV antenna 18awg satellite RG6U rg6 coaxial cables

F A Q

1, Who are we?
We were founded at the year of 2006 in Zhejiang China. We sell our products to Europe(28.00%), Middle East(26.00%), Africa(25.00%), Asia(12.00%), South America(5.00%), North America(3.00%), Oceania(1.00%). There are about 51-100 workers in our factory.
2, How can we guarantee quality?
Always a pre-productsion samples before mass production
Always final inspection before shipment
3, What can you buy from us?
Coaxial cable, Network cable, Patch cord cable, Telephone cable, Alarm cable, Electric wire, Speaker wire, Microphone wire, ABC cable, Fiber Optic cable, Communication cable, Data cable, Cable tie, Electrical tape, Non-woven products, and some related Tools and Accessories
4, Why should you buy from us not from other suppliers?
Professional Technician Team
Professional & Hard-working Employee
Professional, Hornest, Warm-heart Service
We Guide & Sell you not the best, not the Cheapest but the Most suitable goods for your market. Once business start, After-sale service forever.
5, What's the MOQ:
Usually, the MOQ is 30km, but every inquiry will be considered individually.
6, What service can we provide?
Accepted Delivery Term: FOB, CFR,CIF
Accepted Payment Currency: USD, EU, GBP, CNY
Accepted Payment Type: T/T, L/C, D/P, Western Union
