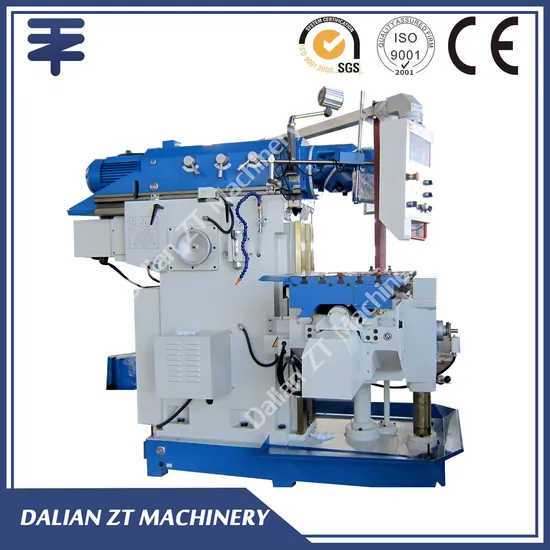

X5750 X5746 Heavy-duty (CNC ) RAM Milling Machine
| US$20,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
X5750
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
460X1235mm
T-Slot
5/18/80mm
Table Travel (X/Y/Z)
900X650X4000mm
Main Motor Power
5.5kW
Transport Package
Wooden Case
Specification
2570*2035*1990mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8459699000
Production Capacity
1000 Sets/Year
Product Description
Main Feature 3 axes with ball screws, high precision 3-axis feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate C Mechanical change speeds in head stock, powerful millingD Table with an extra supporting column, big load, high accuracy
E It can mill any angle surface through front half-sphere by swiveling milling head
| Specifications | Unit | X5746 | X5750 |
| Table size | mm | 460*1235 | 500*1600 |
| T-slots(NO./width/pitch) | mm | 5*18*80 | 5*18*80 |
| Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 |
| Swivel angle of milling head | - | 360° | 360° |
| Spindle taper | - | ISO40 | ISO50 |
| Spindle speed range | r.p.m | (27)30-2050 | (27) 30-2050 |
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 |
| Table rapid speed | 2200/2200/1100 | 2200/2200/1100 | |
| Distance between spindle nose and table surface | mm | 58-508 | 50-550 |
| Distance from spindle center line to column | mm | 20-670 | 45--745 |
| Main motor power | Kw | 5.5 | 7.5 |
| Feed motor | Kw | AC servo motor X/Y:15NM;Z:18NM | AC servo motor X/Y:15NM; Z: 18NM |
| Max load | Kg | 800 | 1800 |
| Overall size | mm | 2570x2035x1990 | 2625*2460*2080 |
| weight | kg | 3600 | 4200 |
PACKING, DELIVERY AND FIXING
CUSTOMERS' VISITING & EXIBITIONS
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
14 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
