Ordinary Gantry Type Large Table High Quality Milling Machine

Product Description

Product Description

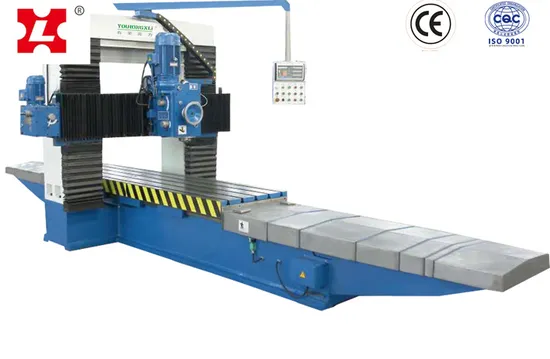

Ordinary gantry type large table high quality milling machine
Product Parameters

Specification		Unit	X2010	X2012	X2014
Max.outline	Length	mm	2000/3000/4000
	width	mm	1300	1400	1800
	width	mm	1000	1000/1200
Distance between columns		mm	1440	1600	1920
Table zise	Length		2000/3000/4000
	width		1000	1250
Table feeding speed	Feed		20-360	25-450
	Rapid travel		1050	1300
Spindle taper			7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of milling head			±35°
Along the cross rail		mm	65/320/890
Side milling head		mm	50/265/730
Power of spindle motor		kw	7.5
Power of table motor		kw	4/5.5/7.5	5.5/7.5
overall size	Length	mm	4550/7000/9000	5000/7000/9000
	width	mm	3200	3550
	Height	mm	2550	2950/3150

Detailed Photos

√ gear driven milling head with 7.5kw spindle motor, ensures powerful milling √ 6 steps spindle speed from 82rpm to 505rpm, for good torque when processing √ 35° left and right swivel head, with 350mm spindle stroke √ rectangular and V type guideway design, high rigidity & low friction, 2000kg load capacity √ scientific design of electrical circult cabinet for easy maintenance √ brief designed control panel is easy to operate
Certifications

Packaging & Shipping

Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet) Delivery type: no need to dismantle machine, can be loaded into 40HQ container Delivery time: generally 60 days production time after the confirmation of order
Company Hot Products Link

Company Profile

Shandong XILI Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service. Hope we can built long-term business relationship with you.
FAQ

1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & conventional manual milling machines. Include:CNC gantry machining centerVertical machining centerConventional manual Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.6. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
