Sdlg 46t-E6400f Volvo Excavator with 13L Engine for Mine Projects

Product Description

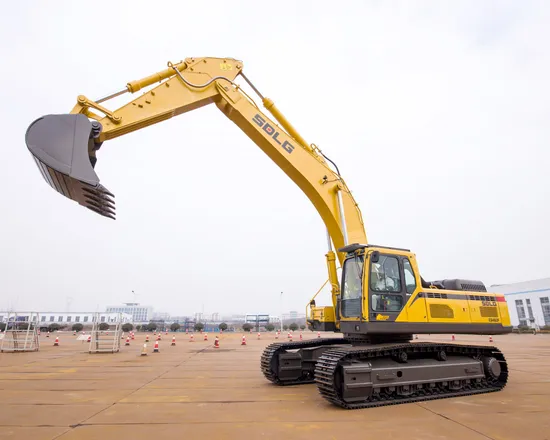

SDLG 46t-E6400F Volvo Excavator with 13L Engine for mine projects
E6460F is an upgraded product suitable for a variety of harsh working conditions developed by SDLG on the basis of absorbing VOLVO advanced design and manufacturing technology. This series of products adopts high-end configuration, global procurement, and careful manufacturing, which fully guarantees the high reliability and high response rate.
1. The original imported Lingong special low-speed and high-torque 13L engine meets T3 emissions, has low fuel consumption, is economical and environmentally friendly, and has strong power; it has a SIEDIA fault detection interface, which can facilitate the detection and maintenance of the engine; adopts three-stage air filtration and three-stage oil Filter and three-stage fuel filter, high reliability of the engine.
2. Double pump constant power negative flow automatic load-sensitive hydraulic system, automatic sensor control, with regeneration, priority and other functions, high production efficiency, strong digging ability, accurate operation and good economy.
3. It is equipped with heavy-duty boom and mine-type stick, which can adapt to harsh mining conditions with high efficiency.
4. The reinforced undercarriage of the extended track and widened chassis makes the whole machine more stable and longer service life.
5. The cab is spacious, sealed, and has good sound insulation effect. It is equipped with three-sided sunshade nets; it uses silicone rubber shock absorbers to reduce vibration and impact.
6. Automatic air conditioner equipped with high-end damping seats and dual-stage air filtration provides a comfortable driving environment.
7. Equipped with EECU, VECU, IECU, KEYPAD and GPS electronic control systems with Lingong proprietary technology, which are coordinated, energy-saving, and efficient; equipped with LCD monitors, with self-checking, monitoring, emergency fault alarm, GPS positioning and remote monitoring, etc. Function, good human-computer interaction, convenient operation and maintenance.

Overall dimension
Overall width of upper assembly(A)	2990mm
Overall width(B)	3340mm
Overall height of cab(C)	3190mm
Tail swing radius(D)	3500mm
Overall height of engine hood(E)	2700mm
Ground clearance of counterweight (F)	1210mm
Wheelbase (G)	4240mm
Crawler length (H)	5180mm
Crawler gauge (I)	2740mm
Crawler pad width (J)	600mm
Min. ground clearance (K)	500mm
Overall length (L)	11020mm
Overall height of boom (M)	3580mm
Overall parameters
Bucket capacity	2.0m³
Overall operating weight	40050kg
Max. excavation force	236KN
Slew speed	0-10.3r/min
Traveling speed (low/high)	3.4/5.3km/h
Average ground pressure	69.4kPa
Max. digging radius	10610mm
Max. digging depth	6850mm
Max. digging height	10170mm
Max. dumping height	7090mm
Min. front slewing radius	4380mm
Engine
Model	SD130A
Type	Water-cooled, Four-stroke,supercharged
Rated Power@Revolution Speed	215kw/1700r/min
Displacement	12800mL
Cylinder bore × stroke	131*158mm
Emission standard	GB20891-2014 China Phase III
Traveling/swing system
Qty. of carrier rollers (single side)	2
Qty. of track rollers (single side)	9
Traveling brake type	Wet disc brake
Swing mode	Hydraulic drive internal tooth single-row ball-bearing
Swing brake type	Wet disc brake
Hydraulic system
Hydraulic control type	Pilot proportional control valve
Hydraulic system type	dual pump constant power negative flow control system
Max. flow	2*300+25.5L/min
Main pump model	K3V180
Operating pressure	320/350kgf/cm2
Main valve model	KMX32N
Arm cylinder - cylinder bore× diameter of piston rod × stroke	1-175*115*1700mm
Boom cylinder - cylinder bore× diameter of piston rod × stroke	2-160*105*1530mm
Bucket cylinder - cylinder bore× diameter of piston rod × stroke	1-145*100*1285mm
Fill capacity
Fuel	620L
Engine oil	45L
Hydraulic oil	515L
Antifreeze	2×6.8L
Swing reducer	6.0L
