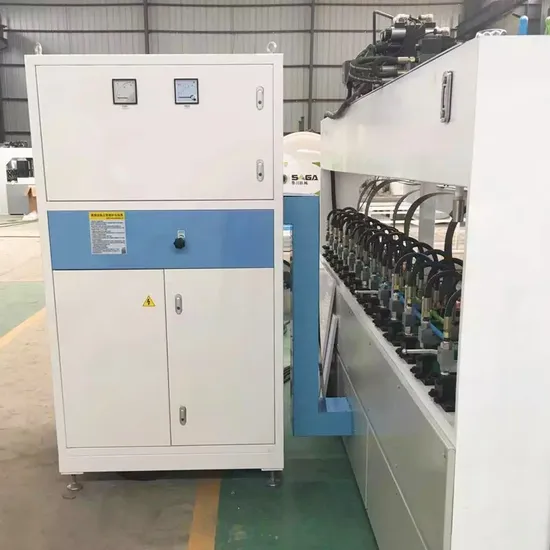

30kw High Frequency Generator for Hf Wood Machine
| US$7,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HF30-SA
After-Sales Service
1 Year
Product Name
High Frequency Generator
Input Power
40kVA
Output Power
30kw
Output
Two Output
Principle
High Frequency Dielectric Heating
Application
Wood Drying/ Bending/ Gluing
Power
3 Phase, 4 Wires
Frequency
50 Hz
Oscillation
6.78 MHz
Overall Size
1050*950*1900mm
Weight
600kgs
Hf Tube
Included
Transport Package
Seaworthy Packing/ Wooden Case
Specification
20KW
Trademark
SAGA
Origin
Hebei, China
HS Code
8514400090
Production Capacity
100 Sets Per Year
Product Description
30KW High Frequency Generator For HF Wood MachineHigh frequency generator is a plant which can turn normal electric power to high frequency power, appling it to the load equipment or electrode, the water or glue molecule within the work pieces is polarized and rapidly change directions or move following the frequency change of the electron-magnetic power, thus cause suddenly friction, this between molecule makes the temperature raise, the water vaporized and glue bond.
HARDWOOD DRYING CURVED PLYWOOD FORMING WOOD PANEL JOINTING/GLUING
PARAMETER
| MODEL | HF20-SA | HF30-SA | HF50-SA |
| POWER | 380V 3 Phase 4 wire | 380V 3 Phase 4 wire | 380V 3 Phase 4 wire |
| FREQUENCY | 50 Hz | 50 Hz | 50 Hz |
| INPUT POWER | 30 Kva | 40 Kva | 70 Kva |
| OUTPUT POWER | 20 KW | 30 KW | 50 KW |
| OSCILLATION | 6.78 Mhz | 6.78 Mhz | 6.78 Mhz |
| PROTECTION | Overload protection, Air cooling pressure detection, filament 2 stages, Lose phase protection | Overload protection, Air cooling pressure detection, filament 2 stages, Lose phase protection | Overload protection, Air cooling pressure detection, filament 2 stages, Lose phase protection |
| TUNING MODE | Variable capacitor | Variable capacitor | Variable capacitor |
| COOLING MODE | Forced air cooling | Forced air cooling | Forced air cooling |
| OUTPUT | 1 or 2 output | 1 or 2 output | 1 or 2 output |
| OVERALL SIZE | 1050*950*1900MM | 1050*950*1900MM | 1250*1200*2050MM |
| WEIGHT | 500KGS | 600KGS | 1000KGS |
DETAILS
COMPONENTS
TEST BEFORE SHIPPING
FACTORY & CERTIFICATES
