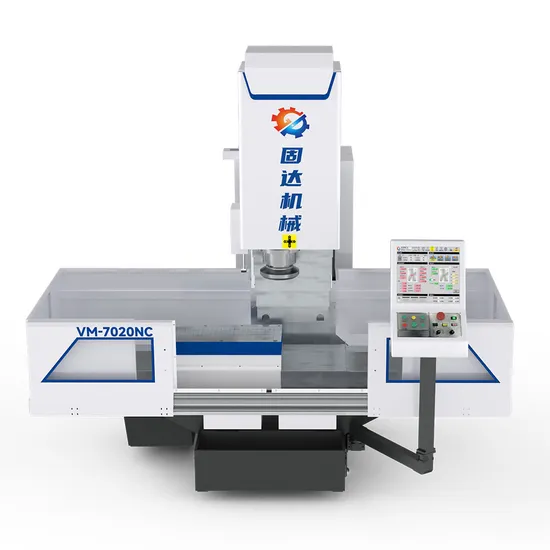

High Precision CNC Plate Mill Machine Tool Metal 3 Axis Vertical Milling Machine

Product Description

Main Features
GooDa Vertical Milling Machine VM-Series can achieve automatic machining, measuring, and positioning by only one setup, significantly reducing tool wear and improving production efficiency, enabling convenient and efficient processing.
Main Functions
High-power electro-permanent magnetic chuck with square poles
Automatic milling
Automatic measuring and tool positioning
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	VM-7020NC
Category	Attribute	Value	Unit
Worktable	Worktable size	195*700	mm
	Max. load capacity	350	KG
	Magnet chuck size	Hand lever magnetic table	/
Processing capacity	Number of control axes	2	/
	Max. processing thickness	200	mm
	Cutting size	195*700	mm
Spindle	Spindle speed	50-500	rpm
	Spindle motor power	11	kW
	Spindle taper	BT50	/
	Cutter diameter	Φ200	mm
Feed speed	X / Z servo motor	1.3/1.3	kW
	X / Z maximum rapid feed rate	5000	mm/min
	X / Z maximum cutting feed rate	2500	mm/min
Accuracy	Flatness	0.01	mm/100*100mm
Tank capacity	Lubricating oil tank	4	L
Size & weight	Machine weight	About 3000	KG
	Machine size ( L*W*H )	2700*2400*2250	mm

Applications
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.
