Single Cylinder 4 Stroke Small Portable Gasoline/Gas Honda Motor Road Concrete Vibrator
| US$70.00-150.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
CVT
Machining Process
Hydraulic
Structure
Rotor Type
Vibrating Amplitude
0.8-2.0m/Min
Certification
ISO9001: 2000, CE
Condition
New
Color
OEM
Vibration / Min
9800-12000
Shaft Roate Speed
3000-3600
Flexible Shaft (M)
6.0
Transport Package
Carton
Specification
28-60MM
Trademark
CAG
Origin
China
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
52.00cm * 43.00cm * 45.00cm
Package Gross Weight
22.000kg
Product Description

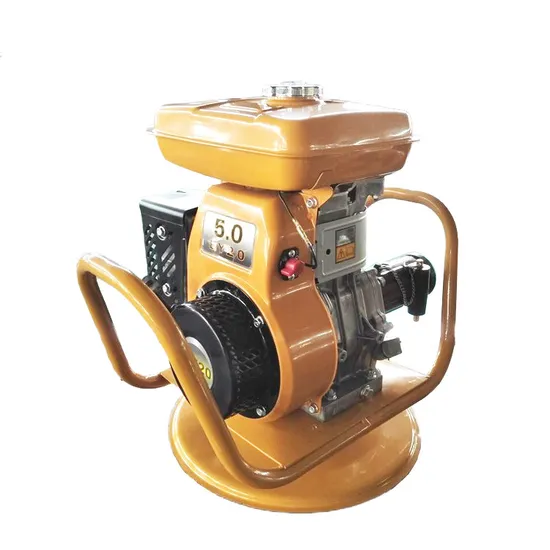

C.A.G Gasoline Engine Driven Concrete Vibrator, is powered by a 5.5HP RB or Honda engine, as well as by Chinese engines. This concrete vibrator has a 6 meter flexi-drive shaft, with the following concrete poker sizes available: 28mm /32mm /38mm /45mm /50mm /60mm. Wide ranges of pock models are suited to all types of work situations. This kind of petrol engine powered poker vibrator is the most suitable alternative for sites where there is no electric current available.Specifications
| Model | 28 | 32 | 38 | 45 | 50 | 60 |
| Vibration Head (mm) | 28*470 | 32*470 | 38*470 | 45*470 | 50*470 | 60*470 |
| Vibration / min | 9800~12000 | |||||
| Shaft roate speed | 3000-3600 | |||||
| Amplitude (m / min) | 0.8 | 0.9 | 1.2 | 1.3 | 1.6 | 2.0 |
| Flexible shaft (m) | 6 | 6 | 6 | 6 | 6 | 6 |
| Weight of hose | 14 | 16 | 18 | 19 | 20 | 21 |
| Packing size of hose(mm) | 870 (L) * 660 (W) * 80 (H) | |||||
| Join type | PIN TYPE ;BUTTERFLY TYPE | |||||
| Engine model | S20 / S160 | |||||
| Fuel tank capacity (L) | 3.8 / 3.6 | |||||
| Starting system | Recoil starter | |||||
| Packing size (L*W*H) mm | 515*380*515 / 515*425*445 | |||||
| Net weight (KG) | 22 / 22 | |||||
