Hg32 ERW Pipe Making Machine

Product Description

Product Description

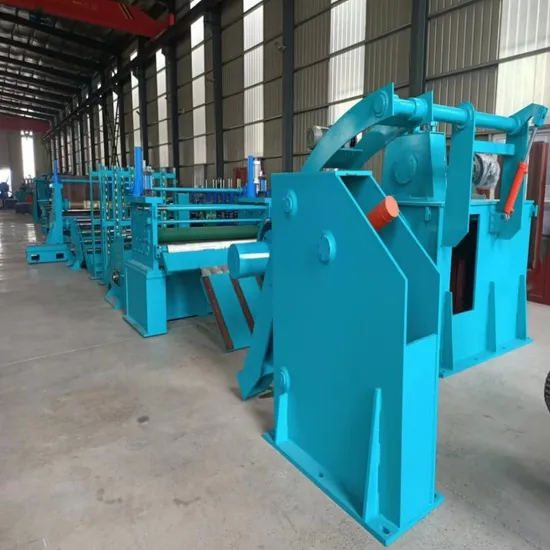

HG32 HF ERW Tube Mill Line
HG32 pipe welding unit is a special equipment for the production of straight seam welded pipe and cold formed section steel in metallurgy, construction, transportation, machinery, vehicle and other industries.
It takes specification steel strip as raw material and produces round pipe and square rectangular pipe of required specifications through cold formed and high-frequency welding methods.
Technical flow:
Steel coil → Double head uncoiler → Shear and welding → Accumulator → Forming section → H.F. induction welding → Deburr frame → Cooling unit → Sizing unit and straightener → Flying saw under computer control → Run out table → Inspecting → Packing → Warehouse
Technical Parameter For Basic Conditions:

1.Production Capacity
Round Pipe	10-32mm
Square&Rectangular	10*10-25*25mm
Pipe wall thickness	0.5-2.0mm(Round pipe) 0.5-1.5mm(Square pipe)
Speed	20-120m/min
Pipe Length	6-12m
Length tolerance	±3mm
2.Steel strip specification
Material	Low carbon steel,Q235,Q195
Coil ID	450-520mm
Coil OD	Max 1200mm
Strip width	30-100mm
Strip thickness	0.5-2.0mm
Max weight	1000-1500kgs
3.Electricity
Dynamic power	380V,3 phase,50HZ(Depending on local)
4.Electric installed capacity:Appro.200KW
5.Cooling Water
Reservoir for high frequency equipment	15m³,one set
Reservoir for circulation cooling water	15m³,one set
6.Compressed air
Pressure	0.4MPA
Flow	0.5m³/hour
7.Size of whole Line:45*4.0m (Length*Width)
8.Product application:GI, carbon steel and stainless steel tubes for metallurgy, construction, transportation, machinery and vehicle industries.

Company Profile
Hebei Yongyue Electromechanical Equipment Co., Ltd. is a professional high-end cold-bending equipment manufacturer with an annual output of 100 sets of equipment, integrating independent research, production, development, sales and service.
Our company has long been committed to the development of straight seam welded pipe equipment, mold and cold bending equipment.
Our company's product quality is stable and cost-effective. Our Excellent design engineers and good processing technology ensure the quality and performance of the equipment.
Our company has been passed certifications of various systems, having a complete and scientific quality management system.
Our company's products designed not only sell well in China, but also exported to Southeast Asia, the Middle East, South America, North America, Europe and other countries and regions, won widespread praise and good reputation.
Our company all use computer software to optimize the design of cold bending equipment and engineering drawing, making drawing, installation drawing.
We have the first - class processing equipment, physical experiment equipment, non - destructive testing equipment and chemical analysis room.
We adopt the most advanced digital computer testing method to produce first-class-quality straight seam welded pipe equipment.
We own a perfect after-sales service network to provide you with fast and thoughtful service from pre-sale to after-sale.
Adhering to service principle of the quality as the root and of the credit as the base ,the general manager with all the staff welcome you to negotiate for our good cooperation.
Welcome to visit our company!
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.

Q: what is the MOQ?
A: 1 set
Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
