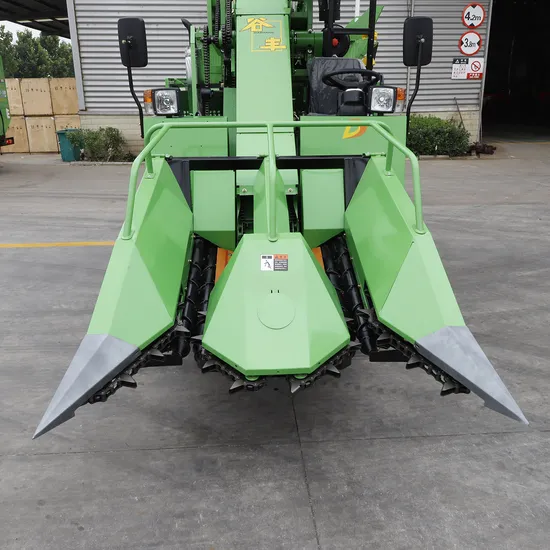

Deutz Dabhand Wheat Harvester Corn Harvester Corn Picker Corn Combined.

Product Description

Model: 4YZP-4L
Technology features: Compact structure, optimization transmission layout, mating 6 cylinders engine, more powerful, flexible operation, efficient. Air braking, easy operating, safe and reliable braking. (only for 4N model) Front cutting, middle position straw turnover, leaf cutting, and efficient cutting. Good peeling, grain collecting dual stirring+ widen output of draught fan, high recovery of grain. Dual arc-shaped bent glass cabin; and air conditioner is optional. Tech data:

NO.	ITEM		UNIT	PARAMETERS
1	Model		/	4YZP-4L (4N)
2	Diesel engine	Model	/	YC4A175-T301 WP6G190E330
		Rated power	kW/hp	129/175.4 140/190
3	Dimension (L×W×H)		mm	6680×2520×3460
4	Working width		mm	2350
5	Elevator	Position/ width	/mm	Central position/ 700/750
		Maximum passing height	mm	3460
6	Minimum ground clearance		mm	280
7	Efficiency in working hour		hm²/h	0.53~0.87
8	Picking system / Length		/mm	Snapping roller/ 864/904
	Lowest picking height		/mm	380
9	stripping machine	Stripping roller type	/	Rubber roller type
		Stripping roller size/ Quantity	mm/piece	Ф75×826/20
10	Grain tank	Volume	L	2400
		Unloading height	mm	2200
11	Straw processing	Header front cutting	Type	Hob type
		Returning machine	/	Sling blade type
		Returning machine width/ position	mm	2250/ central position
		Leaf cutting type	/	Fixed knife type
12	Cabin model		/	Dual arc-shaped bent glass cabin
13	Gearshift method/ Driving model		/	Mechanical +HST gearbox / 2WD,
14	Wheel base		mm	2870
15	Wheel track	Guiding wheel	mm	1660
		Driving wheel		1850
16	Tyre size	Guiding wheel	/	10.0/75-15.3
		Driving wheel	/	15-24

Other terms:
1. Delivery: 30 days for normal orders
2. Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3. Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
ABOUT DEUTZ-FAHR MACHINERY CO.,LTD
DEUTZ-FAHR MACHINERY COMPANY LTD. is a subsidiary company of Italian SAME DEUTZ-FAHR GROUP. We are available to provide customers with a full range of products, including tractors, harvesters. Covered area 45,000 square meters with 700 employees. We adopt Italy SDF group quality control management system and advanced production system. So we can supply high reliability and good performance tractors and harvesters to the farmers from all over the world.
There are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
After-sales service polices: DABHAND corn harvester is offered 12 months of warranty period of the tractor, which shall start from the 3 month as the shipment date. DABHAND corn harvester will offer free service parts in warranty period, and there is no charge for related work hours and indirect expenses. Service training There are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
