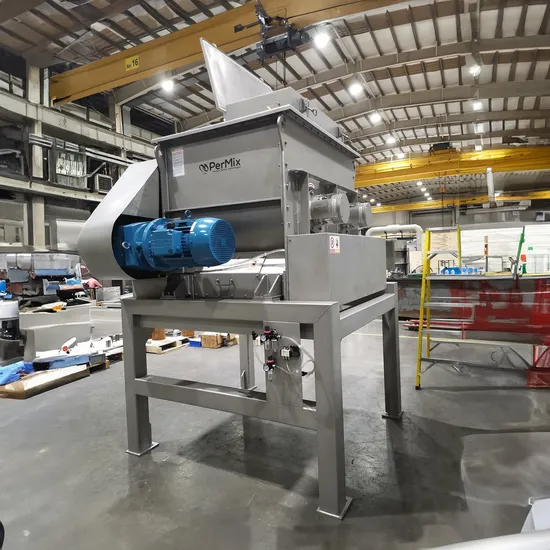

Horizontal Fluidized Zone Twin-Shaft Paddle Blender for Plaster Powder

Product Description

Product Parameters Specifications of PFB-T (Twin Motor/Gearbox Drives):

Model	Total (liter)	Useful (liter)	kW (*)	RPM (*)	L (mm)	W (mm)	H (mm)	Weight (kg)
PFB-60T	60	36	0.55x2	120	1,290	660	670	320
PFB-100T	100	60	0.75x2	105	1,400	790	700	400
PFB-200T	200	120	1.5x2	70	1,440	980	830	500
PFB-300T	300	180	2.2x2	60	1,510	1,190	1,100	800
PFB-500T	500	300	4x2	50	1,650	1,360	1,140	1,200
PFB-1000T	1,000	600	5.5x2	45	1,870	1,690	1,400	1,900
PFB-1250T	1,250	750	7.5x2	45	2,060	1,860	1,545	2,300
PFB-2000T	2,000	1,200	11x2	45	2,300	1,740	1,740	2,800
PFB-3000T	3,000	1,800	11x2	40	2,425	2,040	1,860	3,500
PFB-4000T	4,000	2,400	15x2	30	2,760	2,280	1,970	4,800
PFB-5000T	5,000	3,000	18.5x2	30	2,940	2,520	2,140	5,700
PFB-6000T	6,000	3,600	22x2	30	3,190	2,680	2,380	7,600
PFB-10000T	10,000	6,000	30x2	30	3,620	3,080	2,610	10,200

Specifications of PFB (Single Drive with Chain or Gearbox Transmission):

Model	Total (liter)	Useful (liter)	kW (*)	RPM (*)	L (mm)	W (mm)	H (mm)	Weight (kg)
PFB-60	60	36	1.1	120	900	700	670	320
PFB-100	100	60	3	105	1,000	890	700	400
PFB-200	200	120	4	70	1,090	1,035	820	500
PFB-300	300	180	5.5	60	1,250	1,270	995	800
PFB-500	500	300	7.5	50	1,430	1,490	1,120	1,130
PFB-1000	1,000	600	11	45	1,580	1,750	1,200	1,750
PFB-1250	1,250	750	15	45	1,910	1,990	1,350	2,100
PFB-2000	2,000	1,200	22	45	2,295	2,080	1,600	2,700
PFB-3000	3,000	1,800	22	40	2,410	2,280	1,760	3,300
PFB-4000	4,000	2,400	30	30	2,770	2,630	1,850	4,500
PFB-5000	5,000	3,000	37	30	3,005	2,940	2,040	5,500
PFB-6000	6,000	3,600	45	30	3,130	3,080	2,100	7,000
PFB-10000	10,000	6,000	55	30	3,585	3,510	2,500	8,400

1. kW/rpm are product dependent and might vary.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
Product Description Introduction:

PerMix PFB series Twin-shaft Paddle Mixer is a fast mixer with high efficiency, which can also be known as Fluidizing Mixer, Fluidized Zone Mixer, Non-gravity Mixer or Zero-gravity Mixer.

The PFB Twin-shaft Paddle Mixer is applied to prepare a homogeneous mixture despite of particle size, shape and density. When the small amount of powder additives or liquid is required to be added into the bulk material, PFB Twin-shaft Paddle Mixers are able to achieve fast and precision mixing with high capacity.
Due to its high efficiency and reliable performance, PerMix Twin-shaft Paddle Mixers are widely applied in many industries, including but not limited to: Building materials, Fly ash conditioning, Animal feeds, Mineral premixes, Instant drinks, Milk powders, Vitamin mixes, etc. Typical applications include but are not limited to:
- Food Industry
Instant drinks/soups, Infant milk powder, Flour/bread/bakery mixes, Frozen vegetables, Treatment of spices
- Feed Industry
Animal feed, Mineral premixes, Aqua / fish feed, Pet food, Dairy additives
- Pharmaceutical Industry
Vitamin mixes, Medical mixes
- Chemical Industry
Detergents, Color pigments, Fertilizers, Explosives, Boric acid, Carbon, Fly ash, Fungicides, Soda ash
- Building Industry
Dry mortar, Blended cements, Tile adhesives/grouting, Brick facings, Cement & Fibers, Flooring materials, Joint compounds, Road lining materials
- Environmental Applications
Fly ash conditioning, Filter dust treatment, Sewage sludge, Food waste
How It Works:
PerMix PFB series Twin-shaft Paddle Mixer consists of paddles with special angles that are mounted on twin shafts in a "W" shaped trough. During operation, the two shafts are rotating in opposite direction.
The paddles sweep the entire bottom of both troughs, and materials are lifted floating between the two shafts (as zero-gravity zone) by the centrifugal force generated by the paddles.
At this weightless zone, mixing of materials of different density is easy and fast because material particle can move freely and randomly, regardless of particle size and density. This brings a rapid and highly homogeneous mixing.
PerMix Twin-shaft Paddle Mixers can be with either overlapping paddles (single drive with chain or gearbox transmission), or tangential paddles (twin motor/gearbox drives).
Drive Unit:
PerMix can provide three options for the drive unit:
- Double direct drive with two separate motor & gearbox assemblies to be connected with the two shafts (tangential);
- Single Drive system (with one motor/gearbox, and synchronized by a heavy duty chain with chain tensioner for the two shafts, which are overlapping);
- Single Drive system (with one motor and a special gearbox with two output shafts to drive the two paddle shafts in a synchronized way, which are overlapping).
Bomb Bay Doors for Discharge:
PerMix PFB Mixers are supplied with large Bomb Bay Doors for fast and complete discharging; with the bomb bay doors, the discharging time can reduce to less than one minute (product and mixer size dependent).
Optional Features
Compared with other powder mixers, PerMix PFB series Twin-shaft Paddle Mixers are featured in:
1. Very fast mixing to supply a typical mixing time of 30~60 seconds
2. Free particle movement in the fluidized zone
3. Minimal heat and low shear for shear and heat sensitive materials (due to the fact that low friction without shear in this non-gravity zone is generated, this makes the PerMix PFB Twin-shaft Paddle Mixer an ideal machine for fragile products that can't tolerate rough handling, even flakes or spray dried bodies remaining intact after mixing).
4. Big bomb bay door for fast discharging & reduced segregation
5. Various drive unit design
6. Low maintenance
Besides, PerMix supplies a lot of options to make the machine even more versatile:
- Easy-clean design with openable access door at non-drive side
The openable door at the non-drive side with cantilever design of the twin shafts gives the mixer the capability to be cleaned in an easier way.
- Easy-clean design with retractable shafts & drive unit
This design provides complete access to the contact parts of the mixer, giving the supreme hygienic possibility and easiest way for cleaning and maintenance.
- Liquid spray nozzles
Liquid can be added into the powder by spray nozzles on a pipe which is installed on the top of the mixing trough. The necessary pump and tank can also be provided by PerMix.
- CIP (Clean-in-place) spray balls
Optional CIP spray balls can be mounted on the PerMix mixers to make the cleaning of mixer inside easy and automatic with customer CIP cleaning station.
- Leading edges of the paddles can be coated by Tungsten Carbide for very abrasive materials.
- Intensive choppers to break lumps
Although PerMix PFB series Twin-shaft Paddle Mixer is featured by its gentle mixing at the weightless zone, it can also achieve rough mixings with additional PerMix Pin Milling Bars to be installed on the top of the paddles. The PerMix Pin Milling Bars are two rapidly rotating bars with pins and a stationary shroud, which introduce high shear force onto the materials during mixing to break soft lumps and agglomerates. In this case, a fill level of 140% of normal capacity is required.
- Construction material
We are able to offer our mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Company Profile PerMix means "Perfect Mixing Technologies"!PerMix is a Chinese-Israeli cooperative venture with the famous Srugo family in Israel, who has been active and reputed in industrial mixing and processing equipment since 1954. PerMix strong advantages over other competitors are 60 years of Designed-in-Israel know-how along with competitive Made-in-China prices!(1) About SRUGO (Israel):SRUGO MACHINES ENGINEERING was established in 1954 in Argentina by the late industrialist, Jakob Srugo. In 1965 the company moved to Israel and operated from Bat-Yam. In 1977 SRUGO moved to Netivot and since then operated a modern plant with an adaptable production line to provide an efficient solution for each customer's requirements. SRUGO exported its products since 1990 to Western Europe, United States, Australia, Eastern Europe, the Middle East and several developing countries.(2) About PerMix:In 2010, Mr. Arie Srugo, the second generation of SRUGO family, sold the whole company. After three years validity period of confidential agreement, in 2013, he decided to work with a Chinese company in order to take the advantage of the lower cost with an improving technology, set up PerMix, and target this company to be present in global market.PerMix Tec Co., Ltd. is established as the professional supplier of industrial mixing and other processing equipment. Our state-of-the-art technology and know-how in this section is originally from Israel. Along with the low labor cost advantage in China, PerMix is born to be your partner for the cost effective solutions in powder, paste and liquid mixing applications.PRODUCT RANGE:We are not only able to offer the single machine with modern appearance and advanced technique, but also to offer the full line system to save your time, which is one of our strong points. With our engineers' decades of experience in this area, PerMix is capable to offer the most suitable solution for any industry that has a demand for mixing.CUSTOMIZED SOLUTIONS:Despite the standard range we are able to design the equipment according to the specific requirements of our customers. PerMix engineers evaluate the customer's mixing and processing problems in order to translate process parameters into soundly engineered and dependable mechanical equipment. PerMix welcomes the opportunity to discuss specific requirements or problems and invites customers to compare and determine for themselves which equipment is best suited for their needs.APPLICATIONS:PerMix has been building a good reputation in both local and export markets over these years. Our products are widely used to serve a variety of industries such as fine chemicals, specialty chemicals, petrochemicals, painting, ink, cosmetics, pharmaceuticals, agriculture, food, beverage, biology, nano materials, paper, adhesive, plastic, electronics, batteries, wastewater, etc.
