Automatic Multicolor 20 Litre HDPE Bottle Screen Printer

Product Description

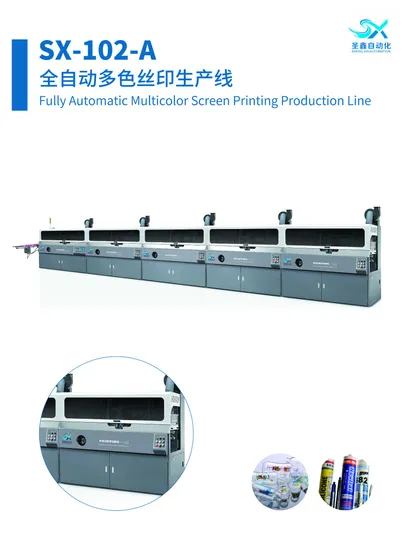

Automatic Multicolor Screen Printing Machine for Round Can
The machine is multicolor automatic screen printer with multifunction. It suitable to print different kinds of round, oval, flat objects. It is widely applied to the package of glass bottles, alcohol bottles and cosmetic container, etc. Widely accepted by the small and medium-sized enterprises due to its high quality price ratio.
Applications:
plastic tube, cosmetic bottles, milk bottles, medical bottles, drinking bottles, lubricating oil bottles, glass silicon, pen sleeves, ceramic, etc.
Features:
2,3,4,5,...color screen printing production line can be composed for different requirement.
1. there is a printer line makes up by one main printer and sub printer.
2. The machine is specialized design for print the large size buckets, with easy operation and stable.
3. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
4. It is a mechanical conveyer , With the touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing, speed:1800pc/hr
5. Fully automatic, it will alarm when the machine without product loading and no printing without product. Then it can save energy
6. All components and control system are from Germany and Japan, guarantee the quality of the print.
7. It is suitable for print round/oval product printing such as the bottles, buckets, cans ect
8. Three languages such as Chinese, English and Spanish supported.
9. We can customize machine according to the special products.
Parameters:
Products size: round/oval
Max speed: 1800pcs/hr
Max long print size: 550mm
Max wide print size: 1100mm
Print size: diameter:Φ150-350mm
long :150-600mm
UV lamp power: 4Kw/set
Power supply: AC380V 3phase 50HZ
Air supply: 6Bar
Packaging and shipping:
Services: Quick response to your inquiry. OEM, ODM and samples are supported. Best price and engineers available to offer after- sales service in any country. More than 10 years experience to meet your requirements in details. Warmly welcome to visit our factory at any time. One year guarantee. Providing technology support in the whole life of the machine. Any other service you want.
About Us
Shenzhen Shengxin Automation Equipment Co., Ltd is a high-tech enterprise, a professional manufacturer and exporter that is concerned with the design, development and production of high quality fully automatic screen printing machine , hot stamping machine and wine bottle lid assembly line.
Shengxin owns a strong technology level, it has much R&D experience of more than ten years.
Shengxin has imported advanced design concept and production technology from domestic and abroad. Shengxin develops and innovates based on customers demand. Creating value for customers while achieve our self-development.
Shengxin owns variety of products which are being used widely in different industry, such as alcohol packaging, cosmetic packaging, medicine packaging, cleaning product packaging. We have won universal praise due to the high co-efficiency and precision of the machineries.
Shengxin regards the quality as life and always follows the idea "quality comes first". All our employees must accept a very strict job training, and participate in technology process examination to provide a perfect pre-sales service, installation, debugging and training service, after-sales service for our clients.
Our equipment brings you fortune, our service makes you and us succeed. Shengxin is striving forward for leading the automation equipment development.
Production Workflow Chart:
Honor:
Cooperation partners:
Cases:
