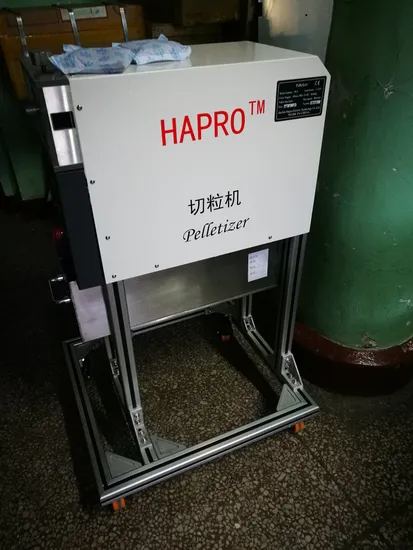

Laboratory Miniature Rotary Knife Disc Granulator

Laboratory Miniature Rotary Knife Disc Granulator

US$5,500.00 1 Piece (MOQ)

Basic Info.

Certification
CE
Condition
New
Customized
Non-Customized
Automatic Grade
Automatic
Structure
Horizontal
Cutting Size
3mm
Max. Cutting Capacity
6.5 Kg/Hr
Lines Number
2 Lines
Motor Power
1.1kw
Rotary Knife Material
High-Speed Steel
Transport Package
Plywood
Trademark
Hapro
Origin
China
HS Code
9024800000
Production Capacity
100/Year

Product Description

When the material is extruded from the extruder through the granulating mold, it becomes a strip after water cooling or wind cooling, and enters the granulator, and is evenly cut into particles by rotating cutter.
Photograph Performance Index Performance Parameter
Diameter of rotary knife 80 mm
Cutting size 3 mm
Rotary knife Material High-speed steel
Motor power 1.1 kW
Speed control Inverter control
Speed of rotary knife 80-140 r/min
Max. Line speed 3.6 m/min
Max. Cutting capacity 6.5 kg/hr
Power supply voltage 3×380V,50/60 Hz ,+N +PE
Dimension (L×W×H) 600×600×1100 mm
Weight 150kg
