Industrial Herb Seaweed Gulfweed Grinder Chrysanthemum Gypsum Insect Pulverizer Machine

Product Description

Product Description

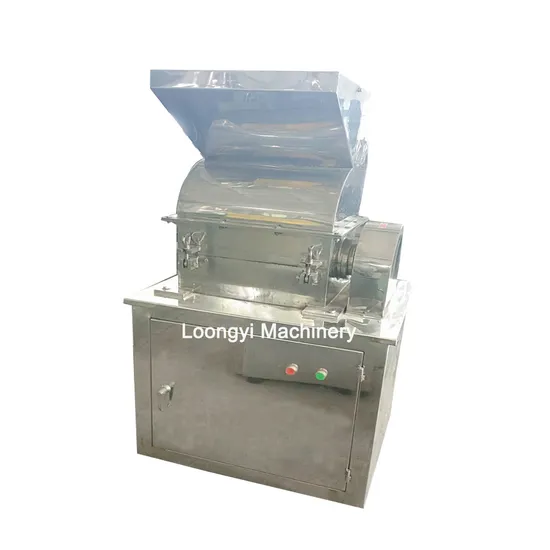

WF Series Coarse Crusher
Product Introduction:
This machines is applied as supporting equipment before fine crushing process in lines of pharmaceutical,
chemical and food stuff etc. It has a good effect for most material.
It is suitable for making granules or be used as a primary mill for fine powder grinding process.
Working Principle:
This machine is of horizontal crushing structure. The material is fed into the crushing chamber througha hopper, crushed by cutting and impact of both fixed and rotating knives, and flows into the exitautomatically under the effect rotating centrifugal force. Designed according to GMP standard andwholly made of stainless steel, this machine has simple structure, convenient cleaning and low noise,being the ideal equipment for coarse crushing. Product Parameters

Model	60	100	200	300	400	600	800
Capacity (kg/h)	20-80	50-300	100-300	100-800	100-1000	500-3000	500-8000
Feeding Size (mm)	≤ 50	≤ 100	≤ 100	≤ 100	≤ 100	≤ 100	≤ 100
Crushing fineness (mm)	0.5-20
Spindle speed (r/min)	400
Motor power (kw)	2.2	4	5.5	11	22	37	45
Weight (kg)	150	190	280	350	450	800	1200
Overall size (LxWxH) (mm)	1000 × 550 × 1100	1120 × 620 × 1200	1150 × 760 × 1350	1200 × 900 × 1500	1300 × 1000 × 1500	1500 × 1200 × 1600	18600 × 1300 × 1600

Detailed Photos
Packaging & Shipping
Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in
manufacturing powder grinding machine, mixing machine, sifting machine, granulator machine, packing machine,
drying machine, conveying machine, slicing machine, cleaning machine and so on, which are widely used in food,
chemical, pharmaceutical and other industries,etc.
Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life.
The company owns more than 50 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing
space. With customer concentric idea as base, it takes every detail seriously in the process of production to assure
high performance and quality of each part and equipment as well as the stable operation in more than 80 countries
around the world. Our products have been exported to such countries and regions as USA,Canada, Europe, Japan,
Australia,Africa,South Asia,middle Asia. We also welcome OEM and ODM models. Our products are approved by CE
and ISO.
Loongyi Machinery locates in No. 236 Yungu Road, Zhutang town, Jiangyin City, Wuxi City, Jiangsu Province, China.
It takes about 20 minutes to take the high-speed train from Shanghai to our city; It takes about 40 minutes to drive
from the high-speed railway station to our factory. There is airplane in our city, so transportation is very convenient.
Over these years, our company has made elaborate design and improvement,on the basis of absorbing features
and advantages of similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.
