Heavy Duty HOWO Delivery Garbage Truck Zoomlion 9320*2500*3095 31000kg Diesel Hook Arm Truck-Mounted Dump Trucks HOWO Tipper Truck 5310

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Product DescriptionProduct Overview
Heavy Duty HOWO Delivery Garbage Truck ZOOMLION 9320*2500*3095 31000KG Diesel Hook Arm Truck-Mounted Dump Trucks Howo Tipper Truck 5310
ZBH5310ZXXZZE6 detachable garbage truck (referred to as hook arm truck) is a garbage transfer truck independently developed and designed by our company for integrated garbage compressors and separate station garbage bins, which is mainly used to transfer domestic garbage compressed by garbage compressors to garbage disposal sites. This model is a new, environmentally friendly, simple and reliable garbage transfer truck, and all loading operations can be completed by the driver alone in the car. This model adopts professional second-class automobile chassis, and installs pulling arm device, rear support device, hydraulic system, electric control system and other components.
Heavy Duty HOWO Delivery Garbage Truck ZOOMLION 9320*2500*3095 31000KG Diesel Hook Arm Truck-Mounted Dump Trucks Howo Tipper Truck 5310 can be configured with different arm tops for different customer needs, and can also match different bins for different compression modes.Function Overview
The main functions of the hook arm car are pulling boxes, unloading boxes, garbage transfer, unloading and so on.
Scope of application
This product mainly matches LYSZ22 series integral station box, XT28 series split station box.
Main structure and performance characteristics
The hook arm car is mainly composed of chassis, arm pulling device, rear support device, hydraulic system, electrical system and so on

Product Parameters

Item		unit	Parameters
Vehicle parameters	Maximum Gross Mass	kg	31000
	Vehicle Weight	kg	12600
	Rated load mass	kg	18270
	Overall dimensions (L×W×H)	mm	9320×2500×3095
	Wheelbase	mm	1800+3800+1350
	Front/Rear Overhang	mm	1430/940
	Approach/Departure Angle	( °)	19/34
	Minimum Ground Clearance	mm	230
Operational performance	Pulling time	s	≤60
	Unloading operation time	s	≤60
	Unloading cycle operation time	s	≤110
	Self-unloading angle	( °)	50
	Hook center height	mm	1570
	Outer introduction width	mm	1070
	Horizontal travel distance of sliding arm	mm	1450
	Rated lifting capacity	t	26
	Pressure of upper hydraulic system	MPa	30
	Rear support mode	/	Rear axle plate spring support
Driving performance	Maximum speed	km/h	110
	Maximum Climbing Angle	%	30
	Minimum Turning Diameter	m	22
Chassis parameters	Chassis model, category, manufacturer	China National Heavy Duty Truck Group Jinan Truck Co.
		ZZ1317N466GF1
	Engine model, manufacturer	China National Heavy Duty Truck Corporation (CNHDC)
		MC07H.35-60
	Engine displacement mL	7360
	Limit working condition fuel consumption L/100Km	37.1
	Rated engine power kW	257
	Maximum net engine power kW	254

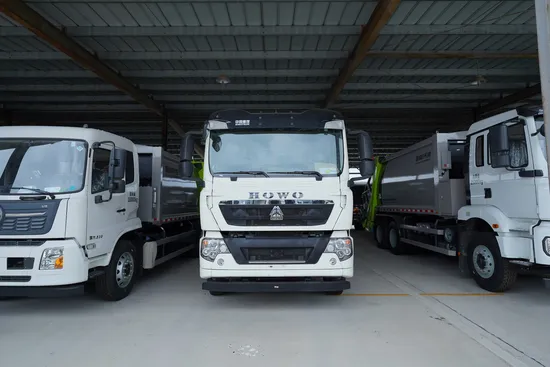

Detailed Photos
The main advantages of the product
1. Superior performance
The draw-arm structural parts are made of high-strength steel, and the key parts are made of high-strength precision casting parts (as shown in the following four figures) to improve safety and extend service life.
2. Good quality
High accessory configuration. Hydraulic oil pump, main control valve, hydraulic lock, balance valve, proximity switch and other key hydraulic electrical components for the international well-known brand, excellent quality, high reliability.
3. Safe and reliable
Electrohydraulic interlock logic control. A multi-layer electro-hydraulic interlock logic control device is installed on the top of the pull arm for high safety.
In the unloading condition, the box can be lifted and unloaded only after the box lock and dump lock are locked;
During the unloading process, the box lock and the front frame cannot move.
Buffer fall device. When the box drops to a certain Angle, the sensor triggers the electrical signal, and the circuit controls the buffer valve in the hydraulic system, so that the box can gently fall to the vehicle to avoid rigid impact.
Rear support device. The rear support cylinder at the 4th axle of the vehicle is extended, and the piston rod is supported by the rear axle leaf spring to ensure that the vehicle will not tip over when the vehicle is pulling the box, which is safe and reliable.
Vehicles are equipped with buzzers. When the lifting arm of the vehicle is moving, the sound alarm is issued to warn the personnel in the working area and ensure the safety of personal equipment.
Safety strut. The vehicle is equipped with a safety support device, and when the vehicle needs to lift the pull arm for maintenance, the safety brace should be supported to protect the safety of the maintenance personnel.
4. High maintainability
Vehicle maintenance is convenient. When the vehicle is repaired, the pulling arm can be lifted, and the maintenance space is very large; The hydraulic and electrical pipes are arranged in order to facilitate fault finding and component replacement.
FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
