Fast Delivery Fire Alarm Exd Burner Flame Detector UV Tube

Product Description

Fast Delivery Fire Alarm Exd Burner Flame Detector uv Tube
Description:
AS-E301-UV detector provide a new generation of fire detection capability and technical standard. The flame detector which adopt a specially designed solar daylight UV sensors , it can distinguish the real flame radiation and interference sources effectively and reduce the impact of environmental factors on detector extremely by means of the built-in 16-bit microprocessor and proprietary signal algorithm processing .The detector can set 5 different sensitivity levels in order to meet more needs in different location.We collected a large number of experimental data through market research and customers' feedback. We have made a big improvement based on its existing in the hardware circuitry and software algorithms.
Features:
* Built-in16-bit high-speed, low-power, high-performance, high-precision data processing chip.
* Adopt patented solar-blind UV sensor.
* It has multi-level sensitivity in order to meet more occasions.
* Detection angle can be able to reach to 120 Degree.
* Detection range can be able to reach to 35m.
* The perfect algorithm combines optimally the flame detection and false alarm capabilities.
* Detector is fit to a variety of fuels.
* Apply to heavy industry applications.
* Explosion-proof designs can be used in hazardous area of industrial sites.
* Low maintenance cost, easy to update and improve.


Parameters:

Product Name	Fast Delivery Fire Alarm Exd Burner Flame Detector uv Tube
Operating Voltage	18-30VDC
Standby Current	≤25mA
Alarm Current	≤35mA
LED Indicator	Green (monitor),Red (alarm),Yellow (fault)
Wiring	4 Wires
Ingress Protection Leve	IP66
Relay Contact Output	N.O and N.C
Relay Contact Load	3A@30VDC
Detection Angle	120 degree
Detection Distance	15-35m
Sensitivity Level	1-5
Operating Temperature	-10 to +55 Celsius Degree
Operating Humidity	≤95% no condensing
Materials	Aluminium alloy, surface baking finish

Dimension and Apperance:
Detection Area Horizontally & Vertically:
Installation Methods:
Wiring Terminals:

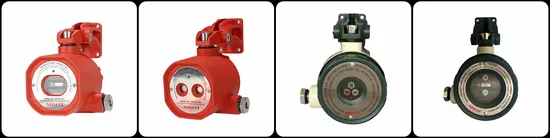

Pictures:
Related Models:
* AS-UFD: Conventional Ultroviolet Flame Detector
* AS-E301-IR2: Explosion proof Dual Infrared Flame Detector
* AS-E501-IR3: Explosion proof Triple Infrared Flame Detector
* AS-E501-UVIR2: Explosion proof Combined Ultraviolet and Infrared Flame Detector
Factory Corners
Workshop and Warehouse
Mass Production
Package and Shipment
