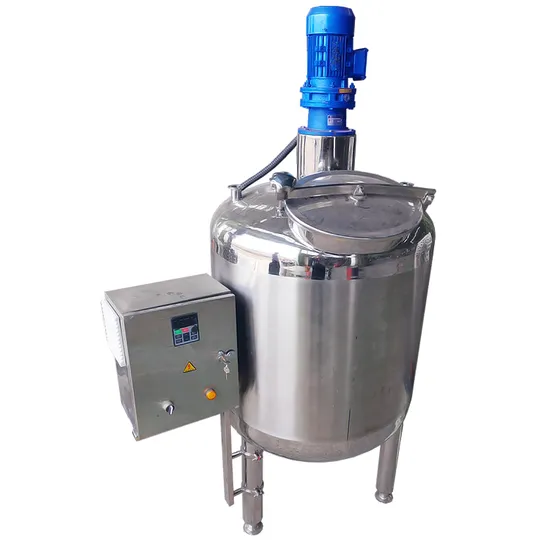

Sanitary Stainless Steel 1000L Electric Heating Mixing Tank

Sanitary Stainless Steel 1000L Electric Heating Mixing Tank

US$1,000.00 1 Piece (MOQ)

Basic Info.

Application Area
Food
Certification
CE, ISO
Condition
New
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Drum Shape
Disc
Stirring Type
Mixer
Working
Liquid Mixer
Material
SUS304 or SUS316L
Function
Liquid Mixer
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Playwood Cases
Specification
50L~20000L
Trademark
RAYEN
Origin
China
HS Code
8479820090
Production Capacity
100 Set/Month

Product Description

Made-in-China Leading Company TOP10 Supplier
Sanitary stainless steel chemical tank
Sanitary stainless steel chemical tank can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.
Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
1.Q: Are you manufacturer or trading company?
A: Rayen is a factory with an international sales company specialized in support for global distributors.
2.Q: How could we confirm the details of the products?
A: RAYEN will provide the detail drawings for you to confirm.
3.Q: How long the warranty will be?
A: It could use several year without external force factors.We have 1 year warranty.
4.Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
5.Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
