Stainless Steel Vertical Plam/Olive/Coconut/Soybean/Sunflower/Vegetable/Tallow Edible Oil Storage Tank

Product Description

Product Description

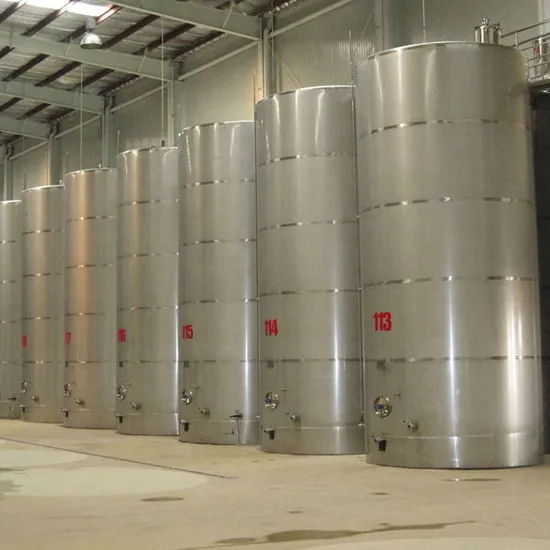

Prettech stainless steel edible oil tank is designed to be a good choice for sanitary bulk oil storage. It's all stainless steel 304 made(ss 316L for high acid oils).
The tank can be designed to be on legs or on concrete plinth, depends on the tank capacity.
Filtering vent ensure the sanitary inside the tank even in dusty working environment.
Top circular manholes and side manholes- easy operation and maintenance.
Breather valve and discharge port - ensure the balance of pressure inside the tank and provide safety protection.
Heating jacket or inner heating coil is mounted for palm oil and tallow tanks, to maintain the flow of these high viscosity oil.
We also offer optional level sensors and stirring systems to increase production efficiency and product consistency.
The liquid level sensor can monitor the oil level in real time to ensure the rational use of the storage tank.
The stirring system helps maintain the uniformity of corn oil and avoid oil stratification.

High-quality materials: Made of food-grade stainless steel, non-toxic, harmless, odor-free, and perfect for keeping corn oil fresh.
Safe and reliable: The storage tank has good sealing performance and anti-corrosion ability, which can prevent the pollution of corn oil from the external environment and ensure the safety of the stored oil.
Strong durability: Stainless steel material has strong corrosion resistance and wear resistance, and can withstand long-term use without damage, ensuring the long-term service life of the storage tank.
Moderate capacity: The storage tank capacity is designed strictly in accordance with market demand and usage habits, and is suitable for home or small commercial use.
Easy to clean: Stainless steel material has the advantage of being easy to clean. Just rinse with water to keep the inside of the tank clean and sanitary, without worrying about oil residue.
Product Parameters

Volume (lt)	Inner dia.:mm	Total Height: mm	Cydlindrical Height: mm
1000	930	2200	1500
2000	1270	2600	1610
3000	1400	2900	2000
4000	1600	3100	2000
5000	1600	3700	2440
10000	1900	5050	3660
15000	2000	5950	4880
20000	2230	6100	5110
25000	2650	5600	4500
30000	2600	6760	5500
40000	2900	7400	6100
50000	3200	7600	6100
60000	3300	8350	6000
70000	3500	8200	7320
80000	3800	8300	7320
90000	3800	9200	7880
100000	3800	9900	8720

Product Advantages
Edible oil storage tanks are carefully designed and heavy-duty manufactured, where all welds are grounded and pickled, laser processing and automatic welding minimize welding defects and give tanks longer life.
Prettech can provide oil storage tanks and auxiliary, consist of a whole system edible oil storage plant, the oil can be transferred into the stainless steel tanks from the tanker and drained out from the oil storage tank, measured quantity automatically.
Prettech is a professional manufacturer of sanitary stainless steel solutions for liquid material, with a history of 53 years. Our stainless steel tanks already used in 40 classifications,gather rich experiences and precipitate skills in varied industries,win 100,000 client's trust Guarantee Quality. We pass through ISO certificates ISO9001, ISO22000, ISO45001 and CE,PED, API650, AS1210,AS1692, have 300+ national patents and engaged in formulation of National Standard in designing, producing, inspection and transportation.
Related Auxiliary
Applications
It can not only be used for edible vegetable oil, such as palm oil, olive oil, soybean oil, sunflower oil, tea tree oil, etc., but also for animal oil, such as fish oil industrial oil, such as biodiesel, lubricating oil extracted from animal fat.

Fabrication
Prettech tanks are made of SS304 grade stainless steel. It offers the best properties for sanitary, food and beverage processing. For highly-corrosive environments, such as salty or acidic areas, tanks can be manufactured out of the higher-grade SS316L stainless steel. All stainless materials are purchased from first quality steel mills, their qualified MTC is supplied and Pretank would inspect again before put in our warehouse.
TIG welding are adopted to make stainless steel tanks. All welding and polishing workers are qualified and rookie trained well before they start to work in our company.
Morden processing machine such as laser cutting machine, laser automatic welding machine, laser tube cutting machine, precision CNC sawing machine, automatic pipe bending machine,robot welding machine, plasma cutting machine, precision leveling machine and other high-end equipment are used in our company to ensure the quality of products, as well as improving the working efficiency to achieve the short lead time.
Quality Control & Inspection
1.We are certified by ISO9001 system,all deparements from technology,purchasing, production to inspections are managed well in order.
2.Each tanks are inspected by hydrauilc pressure,X-ray, or penetraiton inspection before delivery.
3.If any damage or quality defects occurs,we would response in the first time within 7*24H.We will repair or recall according to specific cases,to protect customers' benefits in max. Why Choose US
