CNC Vmc Vertical Machining Center Vmc1270 with CNC Milling Machine

Product Description

CNC 3 Axis Vertical Machining Center Milling Machine For Metal
Product Description

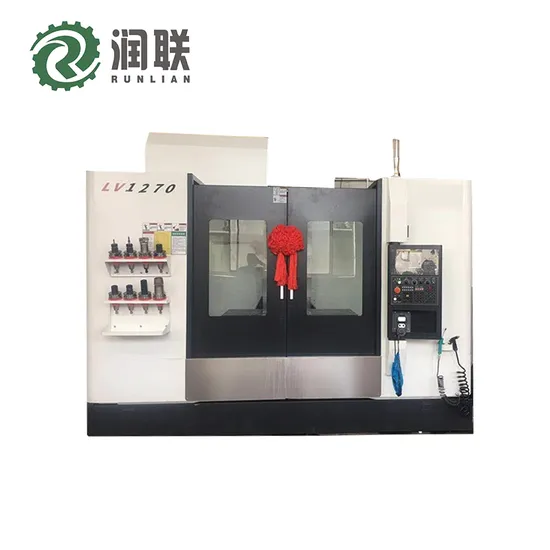

VMC1270 vertical machining center, because X, Y, Z axis is equipped with high-speed moving linear heavy-duty roller guideway pair, so that the machine tool high-speed feed vibration is small, low-speed feed without crawling, both the high-speed rail machine and the high rigidity of the hard rail machine, so it is widely used in machinery manufacturing industry, die manufacturing industry and other industries. Especially automobile manufacturing and motorcycle manufacturing. After one clamping, the workpiece can automatically and continuously complete the processing of milling, drilling, boring, expansion, hinge, countersink, tapping and so on, which is suitable for mass production. The structure of the whole machine is fixed column type and cross sliding table structure. The fuselage adopts super large stable base, high rigidity long span herringbone column, high speed cutting without vibration and deformation. The whole machine is fully closed and protected, the machine tool is beautiful in shape, easy to operate and easy to maintain.


Detailed Photos


Product Parameters
Specifications and configuration

Machine model		unit	VMC1270
X/Y/Z travel		mm	1200/700/600
distance from spindle nose to table surface		mm	120-720
distance from spindle center to column surface		mm	780
spindle power		kw	15/18.5
spindle speed		rpm	10,000
spindle taper			BT40(Φ150)
positioning accuracy		mm	±0.003
repeat positioning accuracy		mm	±0.001.5
table size		mm	1300×700
Max. Table loading		kg	1000
T Slot			7-18-110
X/Y/Z rapid speed		M/min	36/36/24
cutting speed		Mm/min	1-10000
X,Y,Z axes ball screw diameter			Φ40
X/Y/Z axes servo motor power		kw	3.0/3.0/4.5
Linear width/type /guideway no./slider no.	X		45mm/roller/2/6
	Y		55mm/roller/2/4
	Z		45mm/roller/2/6
Control			Depends customer
Max.power consumption		kw	25.0
air		Mpa	0.5-0.7
power			380V/220V/415V/50(60)Hz/3PH
ambient temperature			0ºC-42ºC
relative humidity			≤ 80%
machine Net weight		Ton	7.8 T
Overall dimension		mm	3310x2800x2900

Hot Products
Company Profile
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
