Biomass Pellet Machine Wood Sawdust Pelletizer Animal Feed Pellet Machine for Sale

Product Description

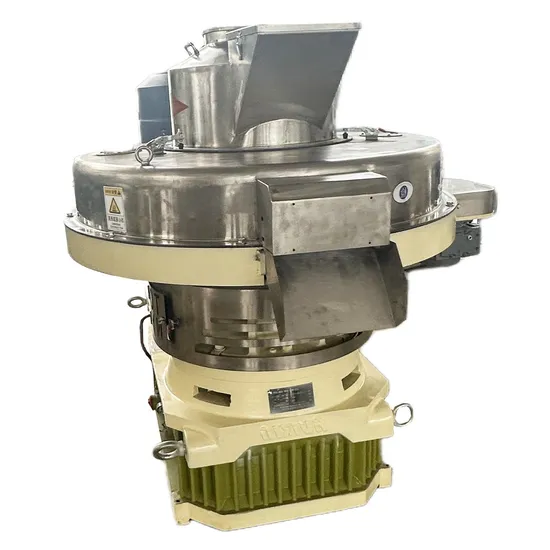

Vertical ring die pellet machine
Vertical Ring Die Riomass pellet machine
Industry innovation eliminated the reducer coupling, and the motor was combined with the large gear drive mode. With the motor shaft and gear directly connected, the power transmission is more powerful, the torque resistance is greater, the stability is stronger, and the accelerator maintenance rate is lower.

Model	Power(KW)	Capacity	Size(mm)	Weight(T)
TYJ551-III	90-110	1.5-2	1900*1300*1850	4.9
TYJ551-III	132	2.2-5	2100*1300*2000	5.5
TYJ760-III	160	2.5-3	2100*1400*2100	8.5
TYJ860-III	220-250	3-4	2350*1500*2200	13.5

Product advantages
1.Vertical hopper: This design can avoid the raw material be stuck in granulating room.
2.Cooling system: As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies: This design increase the efficiency of pellet making,reduce clients cost.
4.Bearing: High precision, high speed, low noise, long life
5.Unique automatic lubricating system: Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energy consumption.It can work continuous 24 hours.






Working Principle of Vertical Ring Die Pellet Machine













Core components
Raw Materials for making pellets
Raw material: hard wood, waste wood and straws, woodchips(palm, mahogany,rubber tree), bamboo shavings, rice husk, peanut shells, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagasse, palm fiber.Size: Less than 5mm (All the raw materials must be crushed into sawdust before going into pellet machine.If not, you may need a wood chipper, wood crusher.)Moisture: 10-15% is best for producing good quality pellet.
Testing machine
About Tony

Why Choose TONY
TONY MADE MACHINERY CO.,LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet mill,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
