Manufacturing Industry High Quality 3 in 1 Fiber Laser Welding Machine

Product Description

Product Description
The hand-held laser welding machine adopt a fiber laser source and transmit high-brightness laser through the fiber, obtain a high energy density output through the hand-held welding head. It is used for welding stainless steel, low carbon steel, aluminum alloy and other materials, and the operation is flexible and convenient. The hand-held laser welding machine is integrated with fiber laser source, hand-held welding head, chiller, wire feeder, laser control system, and safety light emitting system. The overall design is small, beautiful, and easy to move. It is convenient for customers to choose a working place without being limited by space and scope. This machine can be used for welding applications in billboards, metal doors & windows, sanitary ware, cabinets, boilers, frames and other industries.
Advantages of handheld laser welding machine:
A. Easy to handle and don't need the professional welder.B. 8-15m fiber wire, Can weld long-distance and large-area parts.C. High quality and stable: lifespan to 100000 hours and free of maintance.D. High efficiency: more than 5 times of the TIG welding with low energy consumption.E. Various welding proceses: jam welding, seal welding, spot welding, stitch welding and overlap welding .F. Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated weldingH. Low cost, no consumables, energy saving and enviroment protection.I. With the auto wire feeding, IT cover more wide gap and enlarge the application.
Detailed Photos
Water-cooled handheld laser welding machine: Most sales in the market are dominated by water-cooled hand-held welding. Water-cooled hand-held welding uses water

as thecooling medium. Our company sells water-cooled welding machines with different powers such as 500W, 800W,
1000W, 1500W, 2000W, 3000W, etc. And hand-held welding focuses on three models: 1000W, 1500W, and 2000W.
Water-cooled handheld welding machine features: built-in dual-temperature dual-control industrial chiller, constant temperature
regulation and heat dissipation, to ensure the heat dissipation of the core optical circuit components. With fiber laser, stable and efficient.
Packaging & Shipping

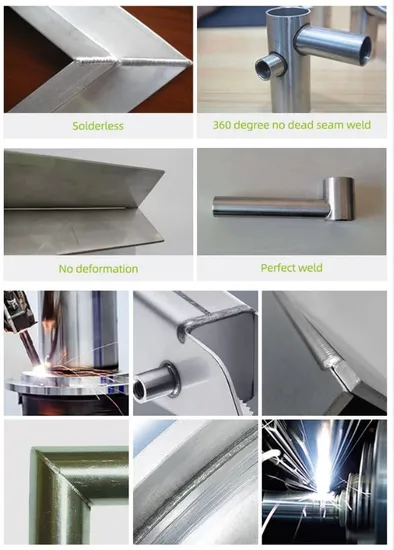

Appication

Product Parameters

Technical Parameters

Model	DPX-W1000	DPX-W1500	DPX-W2000
Laser Source Type	CW fiber laser source(Wavelength: 1080±3nm)
Output Power	1000W	1500W	2000W
Power Adjustment Range	10%~100%
Welding Mode	Continuous Welding, Spot Welding
Adjustable Weld Width	0.2~5 mm
Torch Cable Length	About 10m
Torch Weight	<1.2 kg
Dimensions(L*D*H)	1000*550*700mm		1200*600*1300mm
Net Weight	110kg		250kg
Power Consumption	<5kw	<7kw	<9.5kw
Operating Voltage	Single-phase 220VAC/ Three-phase 380VAC
Working Environment	Temperature:0~40ºC,Humidity<70%
Safety Light Emission System	1. Safely earth lock: the welding head can control the light emission only when the welding head touches the work-piece.2. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low. 3. Welding gun firing button and laser shutter, double insurance to emit light.

Welding speed is 4 times faster than argon arc welding;
One-time welding forming, smooth welding bead, no need for grinding;
Basically no consumables, standardized use, the protective lens can be used for several weeks;
You can get started in 4 hours and become skilled as an professional welder in one day;
Comes with air pressure detection alarm to avoid damage to the welding torch;
Welding Performance

Recommended Welding Thickness for Different Materials
Model	DPX-W1000	DPX-W1500	DPX-W2000
Stainless Steel	≤3.0mm	≤4.0mm	≤6.0mm
Mild Steel	≤3.0mm	≤4.0mm	≤6.0mm
Galvanized Sheet	≤2.0mm	≤3.0mm	≤5.0mm
Aluminum Alloy	≤2.0mm	≤3.0mm	≤4.0mm
Brass	≤2.0mm	≤3.0mm	≤4.0mm
Note: The above is the maximum processing capacity of each model.

Our Advantages

Certifications
After Sales Service
1. 1 year Guarantee for the whole machine.2. 12 months Guarantee and free spare parts supply during this period.3. 24 hours on line service4. 3-7 days lead time5. Provide the Instruction Book, Operational manual and Training Video6. Provide technical support for the whole lifetime on line7. TT Assurance payment8. Shipping By air, DHL, Sea.
FAQ
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video .
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
