Reinforced Products Aluminum Alloy Conductor

Product Description

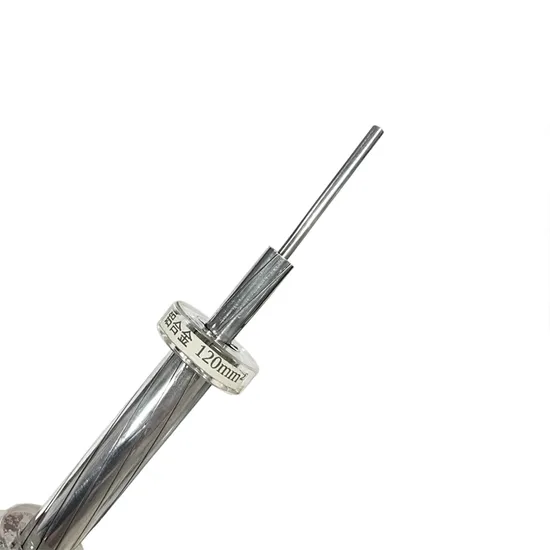

Application of ACSR of conductor Overhead electric power transmission and distribution lines with various grade voltages. It is very suitable for laying across basins,rivers and valleys where special geographical terrain exist Construction of ACSR Conductor ACSR is composed by concentric-lay-stranded galvanized steel wires and aluminium wires. Characters of ACSR Conductor a.Under the same weight,ACSR is with lower cost than Copper conductor b.In order to foster the prevention of corrosion,the non-oxidizing grease can be fully or partially applied to ACSR c.ACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. Advantages of ACSR conductor a. Excellent electric and mechanical characteristics. b. Good conductivity,Resistance chemical corrosion and heat-ageing,environment stress. c. Unit volume light,Simple in structure. d. Convenient to use,especially for laying across rivers and valleys where special geographical terrain exsit.

Chem ical Com ponents (%)
Type	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Zr	Other		Al
												per	Toal
1350	0.1	0.4	0.05	0.01	-	0.01	-	0.05	0.03 Ga, 0.05B 0.02 V+Ti	-	-	0.03	0.1	99.5
1370	0.1	0.25	0.02	0.01	0.02	0.01	-	0.04	0.03 Ga, 0.02B 0.02 V+Ti	-	-	0.02	0.1	99.7
1A60	0.1	0.25	0.01	-	-	-	-	-	-	0.02 R+Ti +Mn+Gr	-	0.03	-	99.6

Conductivity and Strength Tens ile
Type		Conductivity (20ºC)/O·m <=	Conductivity (20ºC)/%IACS >=	Strength Tens ile Mpa	Elongation/% (200m m gauge length) >=
1350	0	27.9	61.8	60-95	25
	H12	28.03	61.5	85-115	12
	H13	28.08	61.4	105-135	10
	H14	28.12	61.3	120-150	8
1370	0	27.9	61.8	60-95	25
	H12	28.01	61.55	85-115	11
	H13	28.03	61.5	105-135	8
	H14	28.05	61.47	115-150	5
	H16	28.08	61.4	130-160	5
1A60	0	27.55	62.68	60-90	25
	H12	27.85	61.91	80-110	13
	H13	28.01	61.55	95-115	11
	H14	28.01	61.55	110-130	8
	H16	28.01	61.55	120-150	5
