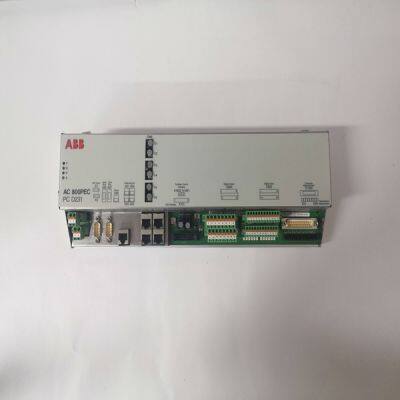

PCD231B101 3BHE025541R0101

Product Details

Product Description

Product Description
Brand: ABB
Type:PCD231B101 3BHE025541R0101
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
SFD Torque/Current Mode The S200 can drive a brushless motor in Torque/Current Mode using SFD Feedback. The drive can be configured either with the S200Tools over the serial port or configured using the S1 and S2 switches. Configuring the drive with the S200Tools utility provides increased flexibility in setting parameters that are not available through the setup switches. When using the S200Tools utility, the configuration parameters should be saved to non-volatile memory (click the NV Save button) to allow the configuration to be recalled on power up. To configure the drive for Current Mode with SFD feedback, set the following parameters: Parameter Value CommMode SetupS2-2 (Default value) with switch S2-2 set to the down position labeled, S on the drive. or SFD CommOff 0 Degrees – for AKM motor series, check with your sales representative for the correct commutation offset angle for other motor series. OpMode SetupS2-1 with switch S2-1 set to the down position labeled, I, on the drive. or Current SelSFDParam SFD (Default value) – recommended setting. This setting will automatically set the motor parameters. To change motor parameters refer to Configuring with SFD Feedback Motor Parameters. CmdSrc Sets the source of the command. CmdGain Sets the command gain for the command input. CmdOffset Sets the command offset for the command input. CMDF0 Sets the filtering on analog input commands. The following are optional parameters that can be set. Parameter Function EncOut Sets the line count of the emulated encoder output. EnInhibitCW EnInhibitCCW Enables the hardware over travel limits.
SFD Velocity Mode The S200 can drive a brushless motor in Velocity Mode using SFD Feedback. The drive can be configured either with the S200 tools over the serial port or configured using the S1 and S2 switches. Configuring the drive with the S200Tools utility provides increased flexibility in setting parameters that are not available through the setup switches. When using the S200Tools utility, the configuration parameters should be saved to non-volatile memory (click the NV Save button) to allow the configuration to be recalled on power up. To configure the drive for SFD feedback set the following parameters: Parameter Value CommMode SetupS2-2 (Default value) with switch S2-2 set to the down position labeled, S on the drive. or SFD CommOff 0 Degrees – for AKM motor series. Check with your sales representative for the correct commutation offset angle for other motor series. OpMode Velocity or SetupS2-1 with switch S2-1 set to the up position labeled, V as shown on the drive. SelSFDParam SFD (Default value) – recommended setting This setting automatically sets the motor parameters. KVP is set for 75 Hz nominal velocity loop bandwidth with an unloaded motor. To change KVP or other motor parameters, refer to Configuring with SFD Feedback Motor Parameters. ARF0 ARF1 Single pole filters in the velocity loop forward path. Set to accommodate the effects of mechanical resonance KVI Sets the velocity loop break out frequency from integral to proportional compensation. CmdSrc Selects Analog, PWM, or Command variable for command. CmdGain Sets the command gain for the command input. CmdOffset Sets the command offset for the command input. CmdF0 Sets the filtering on analog input command.
