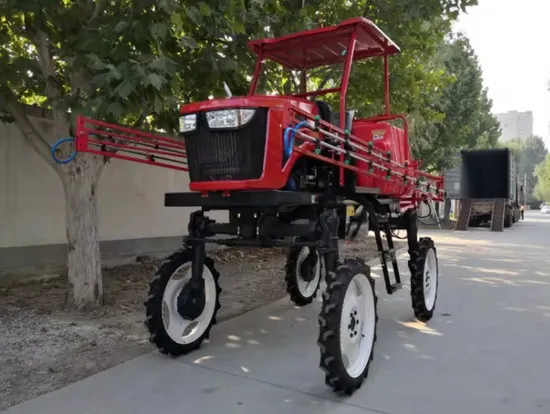

800L Tractor Boom Sprayer for Insecticide and Fertilization Self Propelled Diesel Engine Tractor Sprayer
| US$9,000.00 | 1 Piece (MOQ) |
Basic Info.
Spraying Shape
Liquid Column
Volume
800L
Power Supply
Diesel Engine
Sprayer Wide
12-18m
Weight
1800kg
Dimension
4270*1830*2500
Boom Height
600-1800mm
Fertilizer Applicator
10-25m
Min Ground Clearance
1.3m
HS Code
8424490000
Production Capacity
30000units/Year
Product Description
Sprayer can Customization.SELF PROPELLED BOOM SPRAYER(88hp changchai engine,tank capcaity 800L,sprayer width 16m,Fertilizer,Sun roof, four wheel drive,min clearance ground 1.3m,sprayer boom height:600-1800m)
Hot Sales Sprayer
Sprayer Details
Loading Container(One 40HC Container 6units Sprayer)
A/C Cabin Sprayer Loading Pictures(One 40HC Container Can load 3units)
Different Tyre Can Optional
| Characteristics | Detailed specification |
| Machine Dimension | |
| Overall length (mm) | 4270 |
| Overall Width (mm) | 1850 |
| Overall Hight (mm) | 250 |
| Wheelbase (mm) | 1550(optional1800) |
| Turning Radius (mm) | 2750 |
| Tread (mm) | 1535 |
| Effective Ground Clearance (mm) | 1200( Axle Housing ) |
| Minimum Ground Clearance (mm) | 1200(optional 1500)hign gound clearance |
| Engine | |
| Horse Power (HP) | 50hp/88hp/102hp |
| Type | Quanchai /changchai, Water cooled 4 cycle, 4 cylinder Standing Diesel engine |
| Total Displacement (L) | 1.028 |
| Rated Output (Kw (PS) / rpm) | 16.5(22.4)/3600 |
| Starting Method | Key Starter |
| Transmission Type | 4WD.4WS |
| Steering System | Full Hydraulic Power Steering |
| Gear System | Hydrostatic Transmission System |
| Spray Tank Capacity (Liters / imp.gal) | 500/700/800L/1000L |
| Spray Pump Type | 3 Position Diaphragm Pump |
| Spray boom Height | 500mm-1500mm |
| Fertilizer applicator Wide | 10-25width |
| Spray Width( m) | 12M,14m,16m,18m,20m |
We can make sprayer according to your requirement. Now spray Tank 500L/700L/800L is popular. The engine can optional 50hp /88hp/102hp. We can optional air conditioner. If you need spray rice and wheat ,cotton, Vegetable,can use normal 1.2m ground clearance. If you need spray corn,sugarcane, you shoud choose 1.5m ground clearance. OHE 40HC CONTAINER CAN PUT 6UNITS ,A/C Cabin Can load 3unit
