Yc Diesel Engine 100kw 125kVA 3phase electric Diesel Genset Power Generator

Product Description

Genset Specification

Model	400V / 50Hz / 1500RPM					YUCHAI Diesel Engine								Alternator
	Standby		Prime		400V	Model / Output	Brand	No. of Cylinder	Displacement				Bore*Stroke	JET POWER BRAND
	KVA	KW	KVA	KW	A				(L)		L	g/(kW·h)	(MM)	BRUSHLESS TYPE
YC-25	25	20	23	18	32	4D24G2/A/23KW		L4	2.45	17.8:1	10	≤200	87*103	JET184E/18KW
YC-28	28	22	25	20	36	4D24TG2/A/28KW		L4	2.45	17.8:1	10	≤200	87*103	JET184F/22KW
YC-35	35	28	31	25	45	4D24TG0/A/36KW		L4	2.45	17.8:1	10	≤200	87*103	JET184G/25KW
YC-41	41	33	38	30	54	YC4D60-D21/40KW		L4	4.21	17.0:1	13	≤205	108*115	JET184H/30KW
YC-55	55	44	50	40	72	YC4D85Z-D20/55KW		L4	4.21	16.7:1	13	≤205	108*115	JET224D/40KW
YC-63	63	50	56	45	81	YC4D85Z-D20/55KW		L4	4.21	16.7:1	13	≤205	108*115	JET224ES/48KW
YC-69	69	55	63	50	90	YC4D90Z-D21/60KW		L4	4.21	17.5:1	13	≤205	108*115	JET224E/50KW
YC-80	80	64	72.5	58	105	YC4A100Z-D20/70KW		L4	4.21	16.7:1	13	≤205	108*115	JET224F/58KW
YC-94	94	75	85	68	123	YCD4Y22D-110/80KW		L4	4.21	16.7:1	13	≤205	108*115	JET224G/68KW
YC-110	110	88	100	80	144	YC4A140L-D20/95KW		L4	4.21	16.7:1	13	≤205	108*115	JET274C/80KW
YC-110	110	88	100	80	144	YC6B135Z-D20/90KW		L6	6.871	17.5:1	17	≤202	108*125	JET274C/80KW
YC-125	125	100	113	90	162	YC6B155L-D21/103KW	YUCHAI	L6	6.871	17.5:1	17	≤202	108*125	JET274D/91KW
YC-138	138	110	125	100	180	YC6B180L-D20/120KW		L6	6.871	17.5:1	17	≤202	108*125	JET274D1/100KW
YC-165	165	132	150	120	217	YC6B205L-D20/138KW		L6	6.871	17.5:1	17	≤202	108*125	JET274F/128KW
YC-188	188	150	175	140	253	YC6A230L-D20/155KW		L6	7.25	17.5:1	22	≤200	108*132	JET274G/144KW
YC-200	200	160	188	150	271	YC6A245L-D21/165KW		L6	7.25	17.5:1	22	≤200	108*132	JET274H/160KW
YC-250	250	200	225	180	325	YC6MK350L-D20/235KW		L6	10.34	16.8:1	30	≤195	123*145	JET274J/180KW
YC-275	275	220	250	200	361	YC6MK350L-D20/235KW		L6	10.34	16.8:1	30	≤195	123*145	JET274K/200KW
YC-344	344	275	313	250	451	YC6MK420L-D20/281KW		L6	10.34	16.8:1	30	≤195	123*145	JET444E/260KW
YC-385	385	308	350	280	505	YC6MJ480L-D20/321KW		L6	11.726	16.8:1	33	≤195	131*145	JET444FS/304KW
YC-413	413	330	375	300	541	YC6K500-D30/335KW		L6	12.16	16.5:1	36	≤192	129*155	JET444FS/304KW
YC-440	440	352	400	320	577	YC6K520-D30/356KW		L6	12.16	16.5:1	36	≤192	129*155	JET444F/320KW
YC-481	481	385	438	350	631	YC6K570-D30/389KW		L6	12.94	16.5:1	36	≤192	129*165	JET544C/360KW
YC-525	525	420	475	380	686	YC6T660L-D20/441KW		L6	16.35	15.0:1	52	≤195	145*165	JET544D/400KW
YC-550	550	440	500	400	722	YC6T660L-D20/441KW		L6	16.35	15.0:1	52	≤195	145*165	JET544D/400KW
YC-625	625	500	563	450	812	YC6TD780L-D20/520KW		L6	19.6	14.0:1	55	≤195	152*180	JET544E/480KW
YC-688	688	550	625	500	902	YC6TD840L-D20/560KW		L6	19.6	14.0:1	55	≤195	152*180	JET544FS/500KW
YC-750	750	600	675	540	974	YC6TD900-D31/605KW		L6	19.6	14.0:1	55	≤195	152*180	JET544F/540KW
YC-825	825	660	750	600	1083	YC6TD1000-D31/668KW		L6	39.58	13.5:1	180	≤195	200*210	JET634B/600KW
YC-880	880	704	800	640	1155	YC6C1070L-D20/715KW		L6	39.58	13.5:1	180	≤195	200*210	JET634C/640KW
YC-1000	1000	800	910	728	1314	YC6C1220L-D20/815KW		L6	39.58	13.5:1	180	≤195	200*210	JET634D/728KW
YC-1100	1100	880	1000	800	1443	YC6C1320L-D20/880KW		L6	39.58	13.5:1	180	≤195	200*210	JET634E/800KW
YC-1250	1250	1000	1125	900	1624	YC6C1520-D31/1016KW		L6	39.58	13.5:1	180	≤195	200*210	JET634F/904KW
YC-1375	1375	1100	1250	1000	1804	YC12VC1680-D31/1120KW		12V	79.17	13.5:1	340	≤195	200*210	JET634G/1000KW
YC-1650	1650	1320	1500	1200	2165	YC12VC2070-D31/1380KW		12V	79.17	13.5:1	340	≤195	200*210	JET734C/1240KW
YC-1875	1875	1500	1700	1360	2454	YC12VC2270-D31/1520KW		12V	79.17	13.5:1	340	≤195	200*210	JET734ES/1384KW
YC-2000	2000	1600	1875	1500	2706	YC12VC2510-D31/1680KW		12V	79.17	13.5:1	340	≤195	200*210	JET734E/1520KW
YC-2250	2250	1800	2050	1640	2959	YC12VC2700-D31/1805KW		12V	79.17	13.5:1	370	≤195	200*210	JET734F/1650KW
YC-2500	2500	2000	2250	1800	3248	YC16VC3000-D31/2005KW		16V	105.56	13.5:1	430	≤195	200*210	ECO46 1.5L4A/1840KW
YC-2750	2750	2200	2500	2000	3609	YC16VC3300-D31/2205KW		16V	105.56	13.5:1	430	≤195	200*210	ECO46 2L4A/2000KW
YC-3000	3000	2400	2750	2200	3969	YC16VC3600-D31/2405KW		16V	105.56	13.5:1	430	≤195	200*210	ECO46 VL4A/2240KW

Diesel generator types
diesel generator set

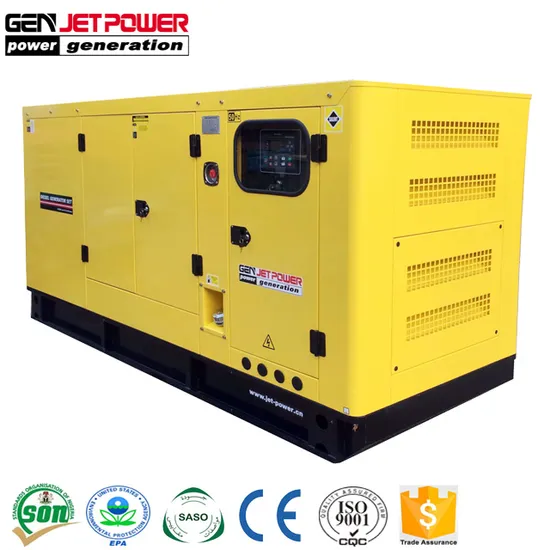

Generator diesel All new design for diesel generator set of open, Silent, Supper silent, Soundproof, Trailer type container
Generator Diesel Description

Main standards	GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Prime output power	from 5KVA to 2500KVA
Rated voltage	120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator phase and connecting	3 phase, 4wire
Rated frequency	50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type	Brushless, self excited or PMG optional
Alternator Insulation	Class H
Alternator Protection	IP21 ~ IP23
Voltage regulation	AVR automatic control 1%
Altitude above sea level	≤1000 meters
Ambient air temperature	≤40°C
Relative air humidity	≤ 90%

Our advantages
1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternat
Our Service
one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our Company
FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHU CITY.
