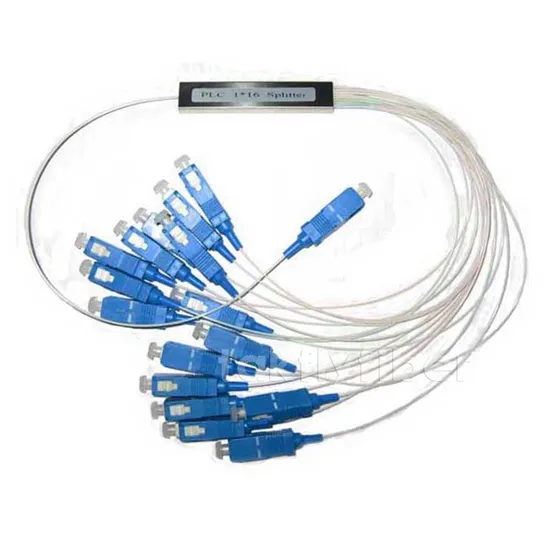

1X16 900um Mini Steel Tube Sc APC/Upc Fiber Optic PLC Splitter

Product Description

1X16 900um Mini Steel Tube SC APC/UPC Fiber Optic PLC Splitter
Description
Planar Lightwave Circuit (PLC) Splitter is fabricated using silica optical wave guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and it is widely used in PON EPON, GPON, and future PON networks to realize optical signal power management. Takfly provides a whole series of 1xN and 2xN splitters from 1×2, to 1×64, 1×128 that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements.
Compared with FBT Coupler, the PLC splitters with more advantage, The PLC splitter with wide transmission wavelenghts, the loss to different wavelength transmission is not sensitive, so it with wide application for different fiber network, High spectral uniformity, It can splitter the signals equally, compact size in many splitting channels and the cost advantage is very obvious on many splitter channels
This series PLC splitter with multiple package type: Bare fiber type, Blockless type, Cassette Type, LGX type, as well as Rack Chassis Type. Moreover, Takfly PLC splitters are available in various fan-out configurations, with pre-terminated fiber optic connectors (SC/PC, SC/APC, FC/PC, FC/APC etc. ).
Standard
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T1117-2001
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: from 1260nm to 1650nm
Wide Operating Temperature: from -40ºC to 85ºC
High Reliability and Stability
Application
FTTH Systems
PON GPON, EPON, BPON etc Networks
CATV Links
Optical Signal Distribution
Specification

Type		1×2	1 x 4	1 x 8	1 x 16	1 x 32	1 x 64
Operating Wavelength (nm)		1260-1650
InsertionLoss (dB)	Typical	3.7	7.0	10.2	13.2	16.2	19.7
	Max.	4.0	7.3	10.5	13.7	16.8	20.4
Loss Uniformity (dB) Max		0.6	0.6	0.8	1.2	1.5	2.0
PDL (dB) Max		0.2	0.2	0.2	0.3	0.3	0.3
TDL (dB) Max		0.5	0.5	0.5	0.5	0.5	0.5
ReturnLoss (dB) Min	UPC Connector	50
	APC Connector	55
Directivity (dB)		55
Power Handling (mW)		300
Pigtail Length (m)		1.0 (±0.1) or customer specified
Fiber Type		SM G657 A1 or customer specified
Operating Temperature (°C)		-40 ~ 85
Storage Temperature (°C)		-40 ~ 85

Note:
1. All measurement at room temperature and excluding connector loss;
2. For devices with connectors, insertion loss will be 0.3dB higher, Return Loss >55dB (APC), >50dB (UPC).
