Spindle taper ISO50 X5750 RAM Milling Machine
| US$3,988.00-15,898.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
X5750
Type
Tool Milling Machine
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
T-slots(No./width/pitch)
5/18/80mm
Swivel angle of milling head
360°
Spindle taper
ISO50
Spindle speed range
(27)30-2050r.p.m
Table rapid speed
2200/2200/1100
Main motor power
7.5kw
Max load
1800kg
Transport Package
Standard Export Packaging
Specification
4200/4500kg
Trademark
MFGSP
Origin
China
Production Capacity
2000sets/Year
Packaging & Delivery
Package Size
266.00cm * 246.00cm * 210.00cm
Package Gross Weight
4200.000kg
Product Description

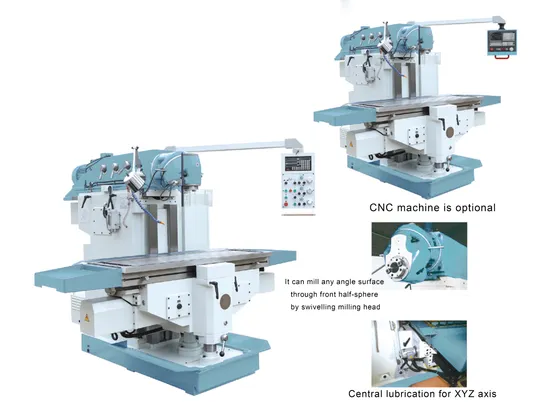

RAM Milling MachineIt can mill any angle surface through front half-sphere by swivelling milling head
Central lubrication for XYZ axis
CNC machine is optional
| Specification | Unit | X5750 | X5750A |
| Table size | mm | 500x1600 | 500x2000 |
| T-slots(No./width/pitch) | mm | 5/18/80 | |
| Table travel(X/Y/Z) | mm | 1200/700/500 | 1400/700/500 |
| Swivel angle of milling head | - | 360° | |
| Spindle taper | - | ISO50 | |
| Spindle speed range | r.p.m | (27)30-2050 | |
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/5-500 | |
| Table rapid speed | 2200/2200/1100 | ||
| Distance between spindle nose and table surface | mm | 50-550 | |
| Distance from spindle center line to column | mm | 45-745 | |
| Main motor power | kw | 7.5 | |
| Feed motor | kw | AC servo motor X/Y:18NM;Z:27NM | |
| Max load | kg | 1800 | |
| Overall size | mm | 2625x2460x2080 | 2625x2860x2080 |
| Weight | kg | 4200 | 4500 |
