Lab 4 Inch 8 Inch 12 Inch Spin Coating System Spin Coater with Vacuum Chucks

Product Description

Lab 4 Inch 8 Inch 12 Inch Spin Coating System Spin Coater with Vacuum Chucks
Product Description
WHAT IS SPIN COATINGA:

Spin coating is a procedure used to deposit uniform thin films to flat substrates. Usually a small amount of coating material is applied on the center of the substrate, which is either spinning at low speed or not spinning at all. The substrate is then rotated at high speed in order to spread the coating material by centrifugal force.A machine used for spin coating is called a Spin Coater.


Application of the spin coater:

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.
Product Parameters
Specifications of spin coater:

	Item	Detail
Spin coater	Supply voltage	AC220V, 60Hz
	Spin speed	0~9999rpm, adjustable
	Acceleration	100~5000rpm/s
	Speed resolution	1rpm
	Time resolution	1s
	Single step time	3000s
	Substrate size	Diameter ≤8 inche (200mm)
	Chamber material	Acrylic
	Operation method	Button + LCD screen
	Dispensing method	Manual dispensing, optional precision syringe pump
	Coating curve	5 segments per curve, a total of 5 curves can be stored
	Pumping port	Φ6mm quick screw joint
	Vacuum Chuck	O.D 10mm, 25mm, 55mm, 100mm
	Overall size	210mm×250mm×180mm
Exhaust system	Vacuum pump	Dry mechanical pump
	Pumping rate	50L/min
	Power supply	AC220V, 60Hz

Detailed Photos

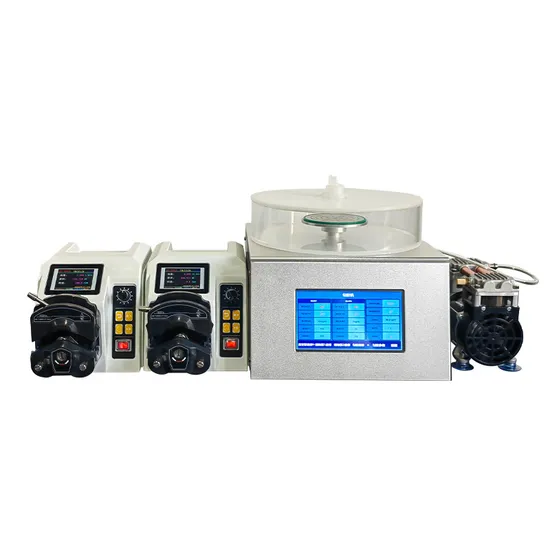

We have spin coater 4-inch 8-inch 12-inch
Vacuum chucks: 10mm, 25mm, 55mm, 100mm, customized vacuum chuck is available
Chamber material of spin coater: Stainless Steel, Acrylic, PP, PTFE
Optional function: Auto injection system, Glove box, Atmosphere purity, Heating, etc

Company Profile
Zhengzhou Tainuo Film Materials Co., Ltd. is a comprehensive company integrating design, research and development, production and sales.Our company's main products are: spin coater, thermal evaporation coater, magnetron sputter coater, plasma sputter coater, E-beam evaporation coater, PLD pulse laser coating machine, plasma cleaner, CVD system, PECVD system, diamond wire cutting machine, melting furnace/stove, arc melting furnace, etc.Our products are widely used in the field of materials science research. We have extensive cooperation with domestic universities, laboratories, and new material companies. It has been successfully exported to more than 20 countries and regions including the United States, the United Kingdom, Germany, Russia, Switzerland, Canada, Brazil, etc. and have established long-term cooperative relationships with local dealers.If you are conducting materials research, please contact us and we will provide you with customized services to make your research experiments smoother!
Packaging & Shipping
We can arrange the shipment of spin coater by sea, by land, by express, by air, also can arrange shipment arrording to your requirements
FAQ
Q. Are you manufacturer or trading company?
A. We are professional manufacturer of laboratory instruments, We have professional R&D team and workshop, which can promise the qulaity and after-sale service.
Q. How's your warranty?
A. Our warranty is 12 months, and provide lifetime maintenance. We provide 24 hours on-line service.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A. 5-10 days----in store. Customzied products---It usually takes 30-60 days depending on your requirements.
Q. Power supply and plug?
A. We can provide products accroding to your local voltage and plug standard.
Q. How to pay?
A. T T, L / C, D / P, etc.
Q. How is the package of goods? Delivery methods?
A. Standard export fumigation sign wooden box packaging or as your requirements.
