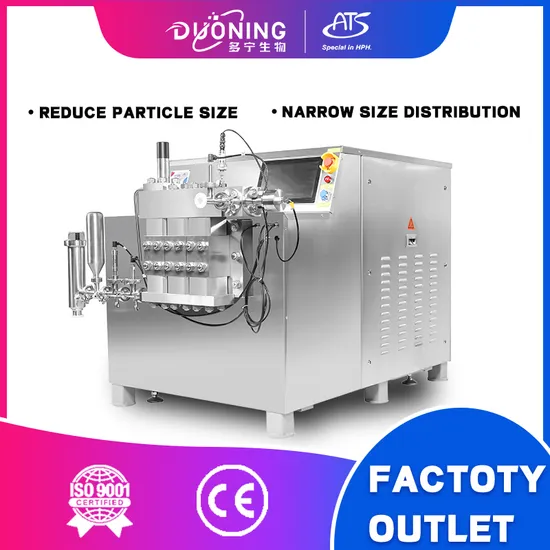

250L/H Liquid Dosage, Semi-Solids Homogenizer

250L/H Liquid Dosage, Semi-Solids Homogenizer

US$47,900.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AH22-150
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Touch Screen Control
Main Material
Stainless Steel
Temperature Control
With Cooling System
Type
Pressure Homogenizer
Warranty
1 year
Working
Valve Body Type
Rated Pressure
160MPa
Working Pressure
150MPa
Specification
1710x1040x1155mm
Trademark
ATS
Origin
China
Production Capacity
5000PCS/Year

Product Description

Product DescriptionATS industrial high-pressure homogenizers offer outstanding versatility and a wide range of capacities (up to 4000 l/h &1500 bar); from dairy to beverages, but also in the pharmaceutical and chemical industries, while guaranteeing maximum efficiency and safe operation.
Main Applications
-Cell disruption: E. coli, yeast, algae, etc.
-Nano Medicine :Lotions, fat emulsions, eye drops, inhalants, etc. -Food emulsion: Coenzyme Q10 microcapsules, vitamin microcapsules, sea buckthorn microcapsules, oat protein, etc.
-Cosmetics/Medical Beauty:collagen, hyaluronic acid, essence, lotion, functional liposome (ceramide, astaxanthin, salicylic acid) -Fine chemicals/new energy materials: CMP polishing slurry, conductive polymers, nano-oxide dispersion, hydrogen fuel cell catalysts, graphene, carbon black, carbon nanotubes, conductive slurry dispersion

Main Features
Ultra-high pressure and heavy-duty design.
With excellent production stability.
Equipped with high-precision pressure sensor and digital display panel.
Equipped with frequency conversion control system, and the flow can be adjusted according to requirements.
Equipment material:
-Adopt 316L stainless steel with high hygienic level, high-temperature resistant, wear-resistant and anti-corrosion.
-The core components are made of special ceramics, which are durable and have a long service life.
Temperature controllable
-The inlet and outlet of the cooling joint are connected to the constant temperature bath, which effectively controls the temperature rise of the homogeneous material.
Safety control
-Four-level security protection, automatically cut off the controller circuit. Detailed Photos
Product Parameters
AH-22-150
Capacity250L/HMinimum Capacity3L
Max pressure160MpaRated Max pressure150Mpa
Motor power18.5KwVoltage380V
Weight1557kgDimension710×1040×1155mm
Certifications
Company Profile
Antos Nanotechnology (Suzhou) Co., Ltd. was established in 2001 and is affiliated to Shanghai Duoning Group. It is a company specializing in nano preparation equipment and process assistance for cell engineering, medicine, fine chemicals, new energy materials, food and cosmetics, etc., integrating technology. Suzhou high-tech enterprise integrating R&D, production and sales. The company has established advanced standardized workshops and a research center for complex preparation nanotechnology equipment, providing equipment and technical solutions for different stages of needs from experimental to large-scale production. The company's main products include high-pressure homogenizers, micro-jet homogenizers, microfluidics, liposome extruders and other equipment and technical service.
Our AdvantagesTwenty years of industry experience and strong brand strength
-Established in 2001, with 20 years of industry experience
-The factory covers an area of more than 2,000 square meters and has many R&D engineers in the industry
5S management, strict quality control
-The working environment is clean, tidy and orderly, ensuring delivery cycle
-Products are fully inspected before leaving the factory to avoid substandard products leaving the factory.
-In line with international quality testing standards, all finished products have passed international CE system certification.
Quality service, high reputation in the industry
-Professional pharmaceutical equipment, providing process solutions
-Professional and technical personnel provide service support before, during and after sales
Example
Customer Site
