Screw Type Wood Sawdust Briquetting Machine Charcoal Briquette Press Biomass Sugarcane Bagasse Rice Husk Briquette Press Machine

Product Description

Screw Type Wood Sawdust Briquetting Machine Charcoal Briquette Press Biomass Sugarcane Bagasse Rice Husk Briquette Press Machine Product Description

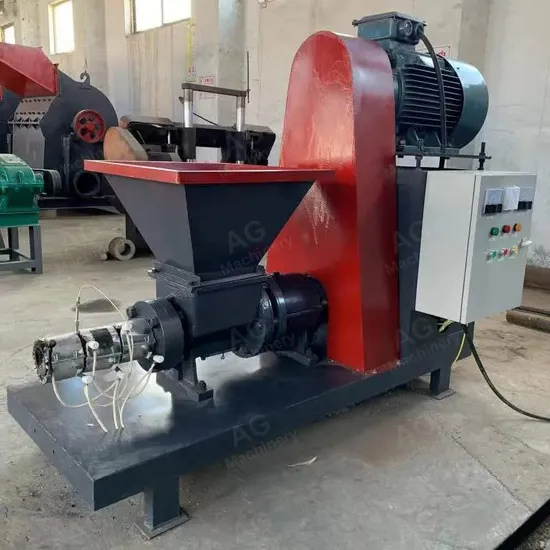

Introduction of Briquette Making Machine
Wood Briquette Machine can process wood wastes materials into charcoal efficiently, which is one kind of green biomass fuel.It is good substitute of good raw wood or excellent coal, smokelss, long burning time. Can be used for warming, heating, drying fuel, grilling, etc.
Briquette Press is driven by electric motor, the raw materials is compressed under high tempreture and pressure by the screw extruding. With the intrinsic attributes of the wood materials, under high pressure, wood element in woodmaterials becomes plastic and makes the fine fiber combined, and then stick solid fuel is formed through the moulding tube. The matural lignin content in the biomass liberated under high tempreture serves as glue in briquetting process, binding wood materials together, so no need any adhensive.
Product Parameters
Specification of briquette making machine

Model	Capacity(kg/h)	Power(kw)	Diameter of briquette (mm)	Dimension(mm)	Weight(kg)
ZBJ-50A	250-300	18.5	48	1600*650*1600	560
ZBJ-50B	300-350	22	48	1800*700*1700	650
ZBJ-50C	350-400	30	48	1950*900*1800	800

Spare Parts
Forming barrel Thruster Heating ring Raw Materials
Raw materials for Briquette Press Machine
Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn
stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir
pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut shell, etc
Final Product:1) This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.
2) The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
3) The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on
4) The available length could be: 20cm,30cm, 40cm, 50cm
5) Final Briquette : Specific gravity: 1300-1900kg/m Calorific value: 4500-5000kcal/k
Application
As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :1) Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units,Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..2) Furnace & Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)3) Brick Kilns: It is the total, substitute of steam coal.4) Residential & Commercial Heating: For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.
Related Products
Wood Crushing Equipment
If the size of raw materials are large, need to be crushed in advance.Mainly two types machines, hammer mill & wood crusher.
Hammer Mill
Hammer mill is the special milling equipment for materials of < 50 mm (diameter), such as branches,tree trimmings, wood pieces, crop stalks, rice husk, cotton stalk, cottonseed skins and so on.
Wood Crusher
The wood crusher can cut logs and branches with a diameter of 1-20 cm. It can also be used for cutting fibrous stalk-like materials such as bamboo, thatch, corn stalk, and sorghum stalk
Sawdust dryer,if the raw material is wet,we suggest to equip with a sawdust dryer.
Air flow dryer,suitable for Output≤1000kg/h Inital moisture≤30% Rotary Dryer suitable for output≥1000kg/h Inital moisture>30%
Complete Briquette Production Line
