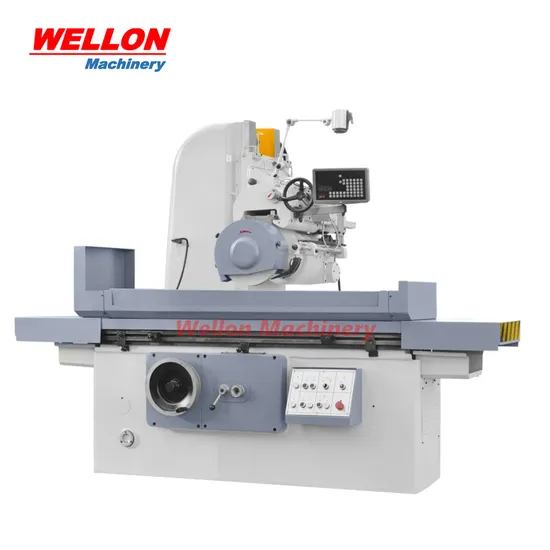

Surface Grinding Machine (Surface Ginder M7130 M7130A M7130B M7130C M7132)

Product Description

Products Description:
This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.

Model		Unit	M7130	M7130A M7130AL	M7130B	M7130C	M7132
Worktable size(WxL)		Mm	300x1000				320x1000
Max matching dimension(W x L)		Mm	300x1000				320x1000
Max distance between spindle center line and worktable surface		Mm	575	575	975	1375	575
Longitudinal moving speed of worktable		m/min	3-27
T-slot number x W		Mm	3x18
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5
	Intermittent feed speed	Mm/t	3-30
Vertical Moving of wheel head	Rapid speed	Mm/min		400
	Hand wheel feed	Mm/.gra	0.005
Wheel Head motor	Power	Kw	5.5
	Rotation speed	Rpm	1440
Total power		Kw	8.63		9
Max loading capacity of Worktable (with chuck)		Kg	470				500
Chuck size(WxL)		Mm	300x680x1				320x1000x1
Wheel size(ODxWxID)		Mm	350x40x127
Package dimension(LxWxH)		Cm	284x171 x213	284x171 x213	284x171 x261	284x171 x303	284x171 x213
Machine Weight		t	3.48	3.5	3.7	4	3.6

Standard Accessories:
Wheel Flange ,
Balancing Arbor ,
Wheel Exactor ,
Coolant Tank ,
Working Lamp
Tool Box and Tools ,
Wheel dresser Stand not include diamond pen
Standard Grinding Wheel,
Leveling Wedge and Bolt
Built in Electro Magnetic Chuck Controller
Optional Accessories:
Standard Electro Magnetic Chuck
Wheel Flange
Balance Stand
Coolant Tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser
