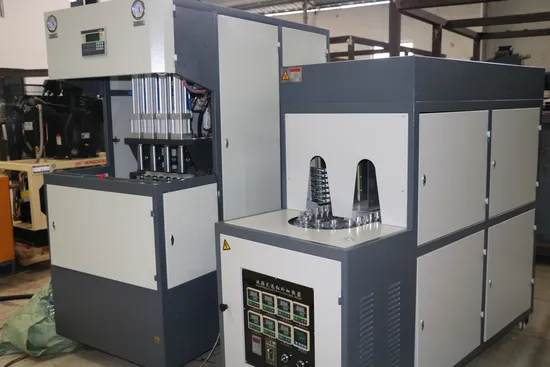

Drink Water Plastic Bottle Making Machine
| US$15,000.00-19,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMs-4c
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Semi-Automatic
Computerized
Computerized
Cavity
4
Transport Package
Wooden Case
Specification
1500bph
Trademark
GM
Origin
China
HS Code
8422301090
Production Capacity
200sets/Year
Product Description
Machine features
1. blowing 0.1-1.5 liters of PET bottles (one out of four)
2. use four mold cavity mold blowing 0.5 liter bottle output can reach 1500 per hour.
3. advanced PLC control system, time control can be accurate to 0.01 seconds.
4. special air storage devices.
5. infrared bottle embryo heater.
6. different heating tube with independent temperature control device to ensure that the bottle embryo has ideal heating effect.
The direction of the 7. heating lamp tube can be adjusted according to different bottle embryos.
8. operation requires only one person, without special training.
9. installation, start simple.
10. scrap rate of finished products is lower than 0.3%.
Main parameters:
| Model NO. | GMS-4C |
| Theoretical Output | 1500pcs/hr |
| Max.Container Volume | 2L |
| Max. Neck Diameter | 40mm |
| Max. Container Diameter | 95mm |
| Max. Container Height | 320mm |
| Mold Thickness | 120-250 |
| Number Of Cavity | 4cavity |
| Use Power | 12kw |
| Working Pressure | 1.0mpa |
| Blow Pressure | <3.0mpa |
| Machine Size | 2.0x0.85x1.8m |
| Machine Weight | 0.45T |
| Heater Size | 1.7x0.65x1.45m |
| Heater Weight | 0.5T |
