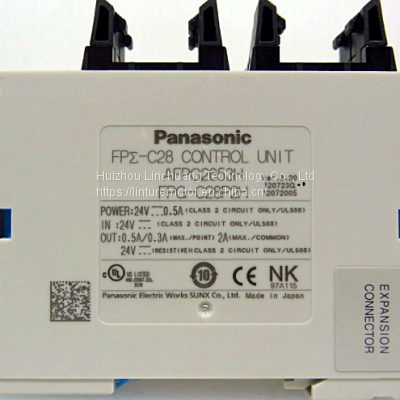

FPE-C2B Panasonic HTM PLC Programmable Logic Controller Unit Pack

Product Details

Product Description

Product Description
Brand:Model Number:Country Of Origin:Type:Number Of Outputs And Type:Expandable:Voltage - Supply:Operating Temperature:High Light:

Panasonic	AFPG2653HTM
Japan	PLC Programmable Logic Controller
16 - Pulse (4), PWM (4), Solid State (8)	3 Modules Max
24VDC	0°C ~ 55°C
ethernet plc controllers,industrial automation using plc

Panasonic AFPG2653HTM PLC Programmable Logic Controller 12 points I/O control
Specification
Built-in memory (Program capacity) : Flash EEPROM(32 k steps)
Input 16 points DC, transistor output (PNP) 12 points I/O control
points when expanded: 380 points max.
Built-in linear interpolation and circular interpolation functions
Features
Large program memory (32k commands)
Large data memory (32k words)
Efficient motion control functions
– 50kHz fast counter input
– 100kHz pulse output
– convenient positioning commands
Fastest processing time, 0.32µs/basic command
Real-time clock
Compact design (W 30 x H 90 x D 60mm)
Top communication performance thanks to 3 possible serial interfaces on the CPU
MODBUS RTU Master/Slave standard in all CPUs
Panasonic PLC Unit AFPG2653HTM
Extended Product Type : FP-Sigma series
Product ID: AFPG2653HTM
PAnasonic Type Designation : FP-Sigma series
