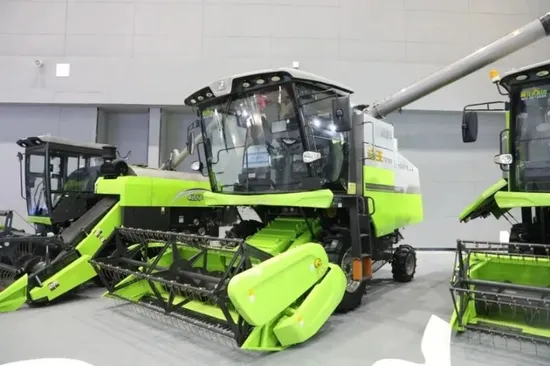

Top Brand Agricultural Machinery 190HP Combine Harvester Te100 with Spare Parts for Sale

Product Description

Chinese Hot Selling 190HP Combine Harvester TE100 Product Description
* 260hp Yuchai engine with strong power,environmental friendly and high efficiency;
* Double longitudinal axial flow threshing separation technology,
* The cleaning area is 4.3m2,the cleaning efficiency is high;
* The grain tank is enlarged with a volume of 7.5m³
* Hydraulic four-wheel drive chassis realizes convenient and fast step less speed change
* Harvest corn kernels, soybeans, wheat and other crops

Compared with the traditional drive mechanism, the motor direct drive has faster acceleration response, easier to get out of the trap and climb over the ridges, good acceleration performance, and high efficiency of the operation and turnaround;

Low fuel consumption: simplify the transmission path by direct motor drive, reduce fuel consumption by 10%; Matched with the famous 175 hp high-pressure common rail engine, with large torque reserve coefficient, energy saving and environmental protection;

Adopt longitudinal axial flow threshing technology, axial flow drum length 3.18m, diameter 620mm, higher threshing and separation efficiency;

The drum transmission box is adjustable in two gears, adapting to the harvesting of different crops;

Built-in chopper, more flexible field operation;

Equipped with 3.7m/4.5m high level grain unloading, the angle and height of grain unloading can be adjusted according to the demand, to meet the personalised needs of users across the egion;

One button unloading, higher efficiency.
High Intelligence
The motor has the advantages of fast response, wide speed range, forward and reverse rotation, etc. Combined with the harvesting conditions of the wheat machine, it can achieve the advantages of maximising the feeding volume, self-adjustment of speed, and anti-clogging of drums;
The fan speed can be adjusted by one key, and the paddle wheel speed is automatically adjusted with the vehicle speed.
Detailed Photos
Product Parameters

Name	Unit	Parameters
Engine power	KW	129
Overall dimensions of the machine (length*width*height)	mm	7200×3280×3420
Quality of the whole machine	kg	7350
Feeding volume	kg/s	10
Working width	mm	2960
Threshing drum type	/	Longitudinal axial flow type
Threshing drum size (outer diameter*length)	mm	φ620×3180
Generator power (rated/peak)	kW	80/110
Drum motor power (rated/peak)	kW	50/85
Travelling motor power (rated/peak)	kW	30/60
Blower motor (rated/peak)	kW	3/4.5
Harvesting wheel motor (rated/peak)	kW	1.5/2.5
Rated energy of power battery	kWh	3.16
Transmission type	/	Mechanical + Motor CVT
Drive type (front, rear)	/	Motor-driven (front)/no (rear)
Gravure screen type	/	Grid type
Repeat stripping method	/	Debris back to drum
Grain unloading method	/	Mechanical automatic grain unloading
Variable speed mechanism type	/	Mechanical + motor CVT
Drive type	/	Two-wheel drive
Drive type (front/rear)	/	Motor-driven (front)/no (rear)
Wheelbase	mm	2788
Guide wheelbase	mm	1810
Drive Wheelbase	mm	1900
