20 Liter Bottle 25L Plastic Jerrycan Bottle Machine 30L Chemical Bottle Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP

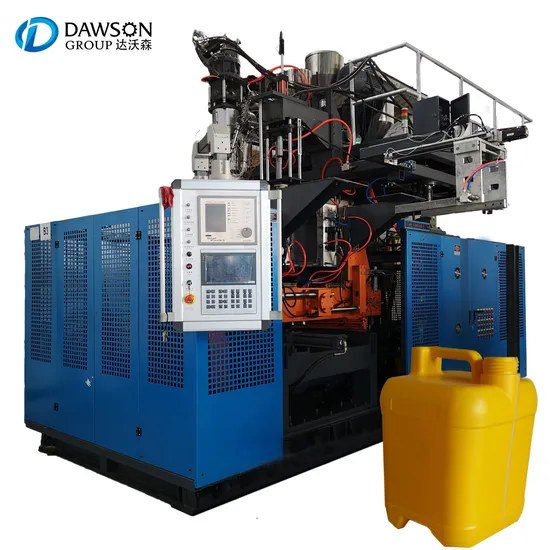

Extrusion Blow Molding Machine ABLB90-30

suitable for making plastic bottle, jars, containers, jerrycans up to 30L, The whole blow molding machine is equipped with
bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

Machine Model		Max. Bottle size	Production forecast
Single Station/1 Head		30L	48~55 BPH

Technical Parameters

Name	Units	ABLB90-30L
Max.product volume	L	30L
Screw diameter	MM	90
Screw drive power	KW	10
Output of HDPE	KG/H	130
Oil pump drive power	KW	11
Clamping force	KN	270
Max.size of mold	MM	680× 660
Template size	MM	290×320
Mold stroke	MM	450-950
Size of machine	L×W×H	4.4×3.4×3.6
Weight of machine	TON	11.3

Clamping system
Lastest Euro style toggle type clamping system
Bigger platen size capable of carriage more giant molds.
Stronger clamping force can make the blow molding item bottle joint line finish smoother.
More precision carriage stroke and easier to adjust.
All casting processes ensure a longer life for the clamping system.
Control system

Lastest Taiwan Wisetech control system
Intelligent man-machine system & easy operation
Parison controls 100 points available for parison thickness control
Available self-diagnose function in function pages.
Flexible to upgrade and change the program through USB.
Available to add different languages for better service customers.
Taiwan keyboard & Emergency stop function.
Product and mold parameters are saving available.
Extrusion & Heating
High quality Bimetallic screw specialized for HDPE,PP or PVC PC
The highest quality motor MengMiu from China for extrusion motor.
Pre-heating & temperature protect function available in the system.
Heater is adapting high quality ceramic heating technology.
Energy saving & high efficiency heating, easy to maintenance.
ABB invertor for controlling frequency of screw and reducer.
Available to add hydraulic screen filter system.
Hydraulic System
Hydraulic motor available to upgrade to servo drive Energy saving, low noise & increase working life of hydraulic units.
Latest hydraulic oil design for smooth running of all hydraulic functional parts.
We choose SUMITOMO pump and YUKEN valve as the key hydraulic part to ensure the reliable performance and smooth running of machines.
We use stainless steel oil tank which is to make sure the clean of oil & anti rust.
All our hydraulic units, pumps, pipes valves had a separate mark, which help to identify during future maintenance or changing of spare parts.
Electrical System
All our electrical components are first-class international brands.
Such as Japan Mitsubishi or Taiwan Wisetech,Japan MOOG, ABB from Europe, Omron relay, Italian Gefran Transducer, Taiwan Delta servo drive controller...
All input and output have monitor system in program, easy and convenient to do future services and technical supports.
The quality standard is in accord with CE standard.
Electrical cabinet equipped with cooling fans for temperature control.
Work Shop
Our professional blow molding machine workshop...
High Quality Mould

High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
