1u 2u Rack Mount ODF Fiber Termination Box 12 24 48 Port Optical Distribution Frame

Product Description

1U 2U Rack Mount ODF Fiber Termination Box 12 24 48 Port Optical Distribution FrameA "PLC Fiber Splitter Rack Mount" refers to a specific type of fiber optic splitter that is designed to be installed in a standard 19-inch rack mount system. Here's a breakdown of its components and features:
PLC Fiber Splitter: PLC stands for Planar Lightwave Circuit. A PLC fiber splitter is a device used in optical fiber networks to split a single optical signal into multiple signals. This allows one optical signal to be distributed to several locations. PLC splitters are known for their high performance, low insertion loss, and reliability.
Rack Mount: This indicates that the splitter is designed to be mounted in a standard 19-inch equipment rack. Rack mounting allows for organized, space-efficient installation of multiple units and is common in data centers, telecommunication rooms, and other facilities where space is at a premium.

Symmetric Type		1×2	1×3			1×4	1×6		1×8		1×16
Operating Wavelength(nm)		650-1350,or On Request
Insertion Loss	Typical Loss(dB)	3.4			5.5	6.7	9		10.2		13.5
	Max Loss(dB)	3.7			5.8	7	9.4		10.5		14
Uniformity(dB)		≤0.6			≤0.8	≤1.0	≤1.2		≤1.5		≤1.8
PDL(dB)		≤0.1			≤0.1	≤0.1	≤0.1		≤0.1		≤0.15
Return Loss(dB)		≥40 or On Request
Directional(dB)		≥50
Fiber Type & Loose Tube		50/125 or 62.5/125 μm Multi-Mode Fiber;φ900μm Loose Tube
Connector		On Request
Fiber Length(m)		≤1.5 or On Request
Chip SizeH(mm)×W(mm)×L(mm)		2.2×1.8×10.4		2.2×1.8×11.4		2.2×1.8×12.9		2.2×1.8×20.4		2.2×1.8×16.4	2.2×2.2×21.4
Chip Channel Spacing(μm)		250		250		250		127		127	127
Minimum Package Size with bare fiber H(mm)×W(mm)×L(mm)		4×4×40		4×4×40		4×4×40		4×7×55		4×7×50	4×12×60
Minimum Package Sizewith loose tube H(mm)×W(mm)×L(mm)		4×7×50		4×7×50		4×7×50		4×7×60		4×7×55	4×12×60

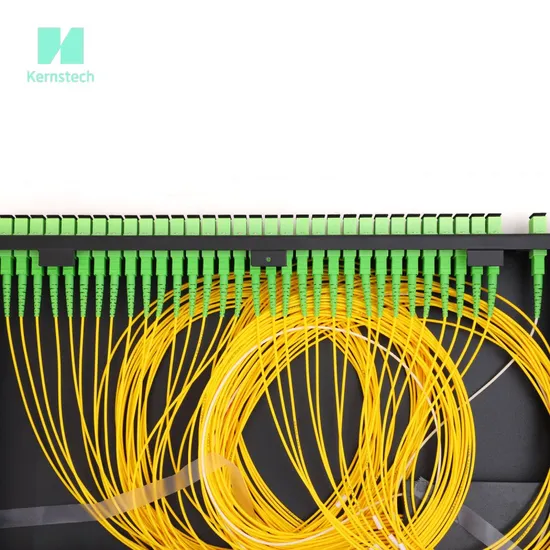

1. The above parameters do not include the fiber connector loss; 2. Each connector in the optical path will increase the loss by 0.2dB. Detailed Photos
Key Features of a PLC Fiber Splitter Rack Mount:Compact Design: It fits into a standard rack mount enclosure, saving space.High Performance: Ensures minimal signal loss and high efficiency in splitting the optical signals.Ease of Installation: Can be easily integrated into existing rack-mounted systems for fiber distribution.Organization: Helps in keeping fiber optic cables organized and accessible in a structured manner.Applications:Telecommunication: Used in networks to distribute optical signals to various endpoints.Data Centers: Manages and routes optical signals within the facility.CATV Systems: Distributes signals to multiple subscribers or locations.FTTX Networks: Facilitates fiber-to-the-x (FTTX) deployments, such as FTTH (Fiber to the Home) or FTTC (Fiber to the Curb).
