Double Shaft Industrial Large Paper Waste Plastic Car Tire Carton Box Shredder

Product Description

Product DescriptionLarge shredder introduction
Large shredder is a kind of equipment widely used in resource recycling industry, is mainly used for crushing various hardness or large volume materials. The following is a detailed introduction to the large shredder:
1. Working principle : large shredder is mainly composed of knife roll, screen, fixed knife, loading box and so on. it cuts or shred the material through the relative motion of the two-axis cutter roller, to achieve the purpose of reducing the size of the material.
2 Scope of application : This equipment is widely used in waste plastics, waste rubber, wood, crop straw and other large volume waste, is also suitable for scrap metal, tires and other materials crushing and recycling.
3. The characteristics of the equipment , large pieces machine has compact structure, crushing ability, easy operation and efficient , wear-resisting durable, convenient maintenance, high security , environmental protection and energy saving, etc.
4.Shredder has a variety of models to choose from: such as single-axis shredder, two-axis shredder, four-axis shredder and so on
How it works:
1. Motor drive : crusher is powered by the motor, motor drives the cutter roll in the crushing bin to rotate.
2. Crushing process : After the material enters the crusher, the rotating tool claw will draw the material into the tool roll, and the material will be deformed and broken by the force of the blade on the tool roll.

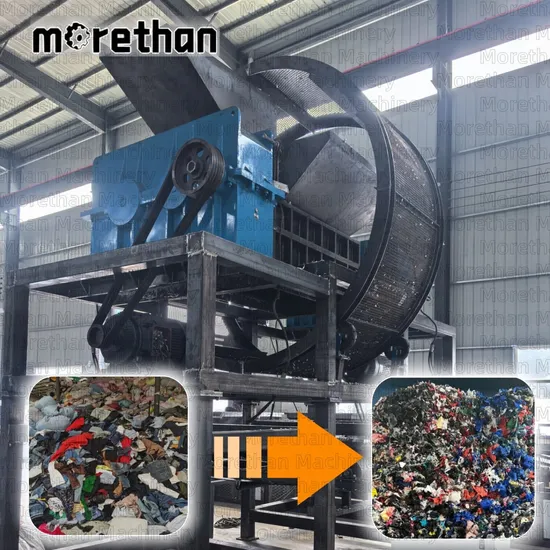

3. Screening and discharging : The crushed material will fall onto the drum screen at the outlet, the material smaller than the screen will be discharged from the net, the larger material will continue to be taken into the crushing bin for crushing, until broken to the appropriate particle size and then out.
Raw material and UsageThere is a wide variety of raw materials that can be crushed by the crusher, including but not limited to:
All kinds of hollow containers : , such as plastic beverage cans, plastic buckets, iron buckets, packing cases, packaging buckets, etc.
used household appliances : , such as TV, washing machine, refrigerator shell, etc.;
pipe : , such as large pipe, pipe fittings, PE pipe, etc.
used template : , such as wooden pallet, plastic pallet, forklift pallet, etc.;
used tires : such as car tires, truck tires, etc.;
scrap metal : such as automobile shell, aluminum alloy, waste cast aluminum parts, engine shell, lead and steel plate with thickness less than 5mm, etc.;
all kinds of garbage : such as household garbage, kitchen garbage, industrial garbage, garden garbage and so on.
In addition, according to the specific model and configuration, can also be crushed gangue, cinder, shale and other materials .
Product Parameters

Model	600	800	1000	1200	1600	1800	2000
output(t/h)	2-5	2-5	5-10	6-15	8-18	14-16	25-60
Number of cutterheads(units)	26	26	30	28	30	40	40
Cutter head diameter(mm)	260	260	360	372	530	560	720
Size of raw materials after crushing(cm)	3-10	3-10	3-10	3-10	3-10	3-10	3-10

Detailed PhotosDetachable box1. The shredding chamber body can be deconstructed from each end of the coupling. The main shaft can be detached as a whole by removing the mounting plate at each end of the bearing.
2. Once the main shaft is dismantled,the cutter body and bearings can be kept and inspected,and if need be,then it can be replaced as well.
3. Regarding the processing of the shredding chamber, care should be taken to position the main shaft and bearing at central position during installation to ensure that the structure remains intact and lasts longer. planetary reducer
1. The sturdy finishing gear is composed of high-quality steel alloy,and the surface is processed through carburizing and quenching methods.
2. Then,the structure is finely processed by means of gear grinding.This through process ensures many operational benefits,such as stable transmission power, low noise and greater carrying capacityDetachable cutter
1. Detachable blade design greatly reduces blade replacement time
2. A complete crushing blade comprises of three parts.
3. It is quite easy to replace a worn blade: simply loosen and tighten the bolt.Sealing system1. The bearing has a quadruple sealing protection design which makes it dust proof and waterproof, effectively prolonging the service life of the bearing.
2. Therefore,it can work excellently in an outdoor, highly dusty environment.Packaging & Delivery
Factory show
Certifications
FAQIf you have any questions, please feel free to contact us and we can answer you in detail. At the same time, we can provide exclusive customized services based on your different needs.1.Q: How do we know you are a manufacturer?
A: We can have a video call at any time to show you our actual factory.
2.Q: Can I get a special design for my product?
A: We have our own R&D department to provide customized services to our customers.
3.Q: Are you a factory or a trading company?
A: We are an industry-trade integrated company with more than 20 years of professional experience.
4.Q: How long is your delivery time?
A: Most models are in stock unless customized.
It takes about 20-30 working days for customized equipment.
For 1 or more containers, it takes about 20-30 working days.
5.Q: How long is your warranty period?
A: Within 2 years from the date of leaving the factory, if the parts are faulty or damaged due to quality problems (except wearing parts), we provide these parts for free.
