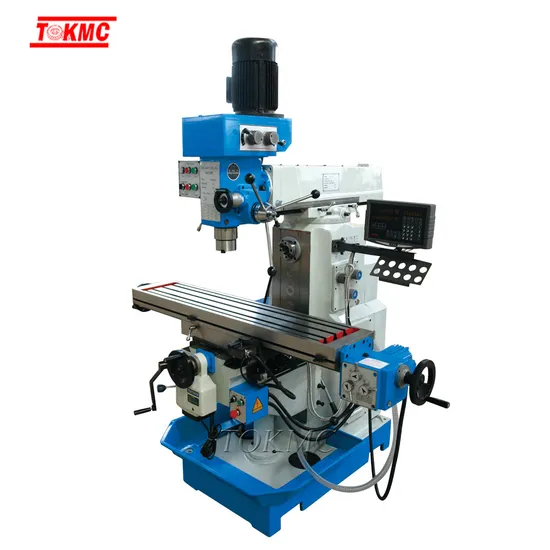

Zx6350c Vertical Horizontal Milling Drilling Machine
| US$3,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350C
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Table Size
1200X280mm
Table Travel
600X280mm
Max.Drilling Dia
30mm
Decibel
Lower Than 85 Decible
Transport Package
1660X1340X2130mm
Specification
1250/1350kgs
Trademark
tokmc
Origin
Shandong China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
Vertical horizontal milling drilling machine,asphalt milling machine| Specification | X6350C | XZ6350A |
| Table size | 1200x280mm | 1120x260 mm |
| Table travel | 600x260 mm | 600x270m |
| Distance from spindle nose to table surface | 100-400mm | 100-400mm |
| Max.drilling dia | 30 mm | 30 mm |
| Max.end milling width | 100mm | 100mm |
| Max.vertical milling dia. | 25mm | 25mm |
| Max. Tapping dia. | M16 | M16 |
| Spindle speed range | 115-1750 rpm V 40-1300 rpm H | 115-1750 rpm V 40-1300 rpm H |
| Spindle travel | 120mm | 120mm |
| Overall dimension | 1660x1340x2130mm | 1655x1450x2150 mm |
| Spindle motor power | 0.85/1.5 kw(V) 2.2kw (H) | 0.85/1.5 kw(V) 2.2kw (H) |
| Weight kgs | 1250/1350kgs | 1500 kgs |
