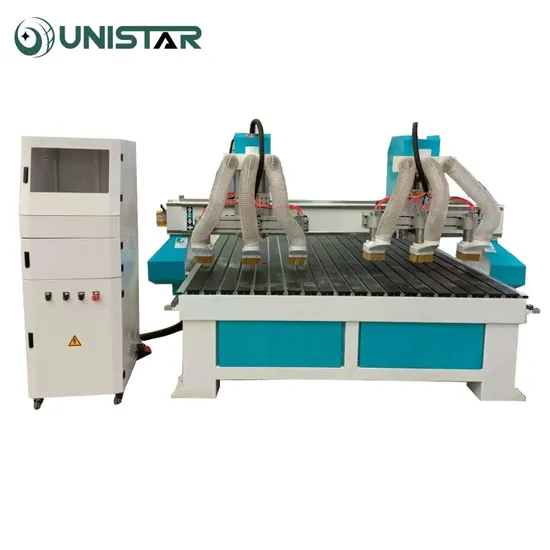

2040 1530 2030 CNC Multi-Head Wood Carivng Machine for Wood/MDF Materials

Product Description

2040 1530 2030 CNC Multi-Head Wood Carivng machine for wood/MDF materials

Engraving machines are characterized by high efficiency, precision and automation, and are widely used in many industries, providing a convenient and efficient solution for the processing of various materials. Users first need to design or select the pattern or model to be engraved on a computer, and then transfer these design files to the control system of the engraving machine. The control system usually consists of a computer and a controller that can accurately direct the cutting tool to cut or engrave on the surface of the workpiece, resulting in a precise pattern or shape.ct quality. Product Parameters

Products name	USM-2040
Machine area (X)	2000mm
Machine area (Y)	4000mm
Machine Area (Z)	200mm
Working area	2000*4000*200mm
Spindle	3.5KW Water cooling spindle
Control system	NC-studio control system
Table type	T-slot table
Motor and driver	Leadshine Servo Motor and Drivers
Reducer	Shimpo reducer
Inverter	Fuling inverter 4.5KW*6
Transmission	X, Y axis by high precision Helical racks and pinions. Z axis Taiwan TBI ball screw (has good performance ,long life ,import from taiwan )
Rail guide	Taiwan Hiwin square linear guide way for x,y axis, import Taiwan High quality rail guide
Electricity	French electricity parts
Limited switch	OMRON limited switch
Prevent dust system	Dust proof system
Oil system	Automatic Oil Lubrication System
Tool sensor	Auto tool sensor
Dust collect system	5.5KW double bags dust collector
Working voltage	AC380v/3ph/50HZ

Product Description
Advantages of machine
The advantages of the engraving machine include high efficiency, high precision processing, high rate of finished products, high adaptability, wide range of processing materials, simple operation, graphic diversity, and saving raw materials.
High efficiency: the engraving machine can quickly and accurately complete a variety of complex engraving tasks, greatly improving production efficiency.
1.High-precision processing: due to digital control, the engraving machine can meet the requirements of fine engraving and realize high-precision processing.
2.High rate of finished products: the accuracy and high efficiency of the engraving machine makes its high rate of finished products and reduces the rate of scrap.
3.Strong adaptability: the engraving machine can adapt to the processing of different materials, such as wood, metal, acrylic, etc., which is widely used in many fields.
4.Simple operation: the center master control system of CNC computerized engraving machine is based on the imaging operating system to send out engraving commands from the terminal, easy to operate, only need to put the processing parts on the equipment work platform to start the equipment switch.
5.Diversification of graphics: for a variety of complexity of the carving can be accomplished without discrimination operation, greatly reducing the difficulty of complex graphics engraving.
6.Saving raw materials: high precision and error-free engraving reduces the waste of raw materials and greatly reduces the cost.
Application
1.Woodworking industry
Linear automatic tool changer cnc router can be used for soild wood furniture,mahogany furniture,solid wood door,supboard door and window,folding screen etc.
2.Artwork industry
Linear automatic tool changer cnc router can process wooden craft,mural art of wood,musical instrument etc.
3.The advertising industry
It can engrave all kinds of signage,trademark,nameplates,badge,decorative gift,embossed medal etc.
4.Small-scale woodworking industry
It can be used for solid wood furniture,mahogany furniture,MDF paint door, solid wood door,composite door,cupboard door and window,bedsidecabinet,folding screen etc.
5.Electronics industry
It can engrave electronic component,integrated circuit,electronic plastic case,electronic product model,circuit board,electronic Light box,computer and mobile phone keyboard,engraving a variety of electronic products.
Detailed Photos

Spindle
We use the 3.5KW Water cooling spindle.It is a well-known brand in China.High efficiency,low noise,stable performance,water-cooled spindle for precision carving.

Rail Guide
We adopt the world famous rail and guide manufacturer Taiwan Hiwin squarerails ,self-lubricating sliding block.This ensures equal force in all directions and accuracy and strength of the machine.

Table Type
The advantages of T-slot table mainly include strong adsorption capacity, easy machine installation, low countertop cost, special materials and crafts processing applicable, high temperature resistance, and good environmental performance, Abrasion-resistant, scratch-resistant, high-temperature-resistant, flame-retardant ability.

Control system
The NC-Studio control system ensures precise control, easy operation, and compatibility with CAD/CAM software, ideal for engraving, milling, and laser cutting, offering high efficiency and stable performance.

Inverter
The meachine adjusted by fuling inverter;this guarantees the high working speed and accuracy,and can realize milling with high speed,high rotating precision,good rotating with low noise.


Motor and Driver
The precision of the servo motor is higher than the stepper motor.Ac servo motor runs smoothly,no vibration phenomenon even in the lowspeed.Servo motor has a strong ability of overload.

Electrical accessory
French import s electricity parts with best quality
Samples of machine

Packaging & Shipping

Company Profile
Certifications
Since company establishment in 2002, we have obtained many certificates such as EU CE Certificate, USA FDA Certificate,Saber Certificate, product patent certificate, ISO high quality inspection certificate, CCPIT Certificate etc.
Client show

FAQ
Q1 :How many years of warranty period?
A1:The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).
Q2: Do you have CE document and other documents for customs clearance
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
A3 :How to install and run the machine?
Q3: Our technician have installed the machine before shipping. For some small parts
installation, we will send detail training video, user's manual along with the machine.
95% customers can learn by themselves.
Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
Q5: I don't know which kind of cnc router machine is suit for me
A5: Just tell us your working industry?
What kind of material you need to cut
And the size of wood board , then we have professional sales to recommend you best suit wood engraving machine .
