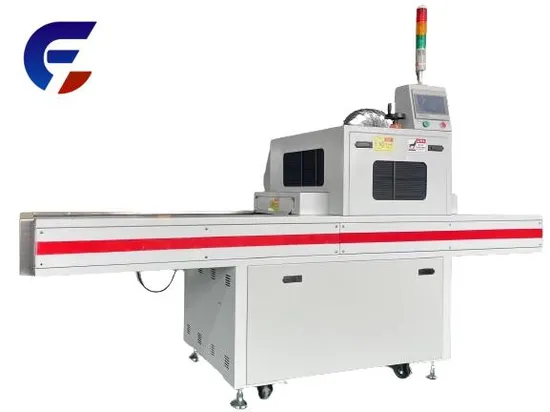

Factory Price Industrial Laboratory High Temperature Tunnel Oven Oven UV Machine Customizable UV Curing Machine

Product Description

Other Specification
V. Lamp	Imported Korean mercury lamp 5KW main peak 365MM, total length of 550MM, light-emitting length of 450MM, left, center and right three-point UV energy difference ≤ 10%, light intensity 5≥ 20MW/CM².
Light box height adjustment range	20-50mm can be adjusted through the screw height.
Steel plate baking paint	RAL9003
Conveyor chain height from the ground	750=50MM, import and export height MAX80MM.
Lamp life	Pressure fluctuations in ± 5%, normal use to ensure that the use of 800HRS or even longer.
Control panel	Gear reducer driven stainless steel conveying network conveying width 450MM, conveying speed 0.5-5.0M / MIN, frequency conversion speed digital display speed in the human-machine interface.
installation device	Inlet and outlet installed photoelectric detection counting, long time no material UV system automatically adjusted to lower energy state to maintain, come to the material automatically return to normal energy output.

Our Advantages
1. After one year after the delivery of free replacement of faulty parts of the after-sales service (except for consumable materials).
2. The company has a large number of related types of spare parts in stock.
3. The upper cover is equipped with air outlet holes, the top is equipped with an extractor fan, the wind speed is adjusted by frequency conversion in the man-machine interface, and the temperature at the outlet is ≤50ºC.
4.Leakage protection switch, reverse prevention, surge protection, over-temperature prevention, jamming detection, transmission/extraction motor overload protection, abnormal emergency switch, control line fuse, etc., in line with international safety standards.
5. Cooling method: using special air duct and waterway design, fan forced air cooling, compressed water cooling.
6. Highly customisable.
7. Best after-sales service: one year free parts maintenance.
