Waste PP PE PET LDPE HDPE Bottle Bucket Woven Bag Crusher Plastic Pallets Film Shredder

Product Description

Waste PP PE PET LDPE HDPE Bottle Bucket Woven Bag Crusher Plastic Pallets Film Shredder
Product Description
Product Introduction

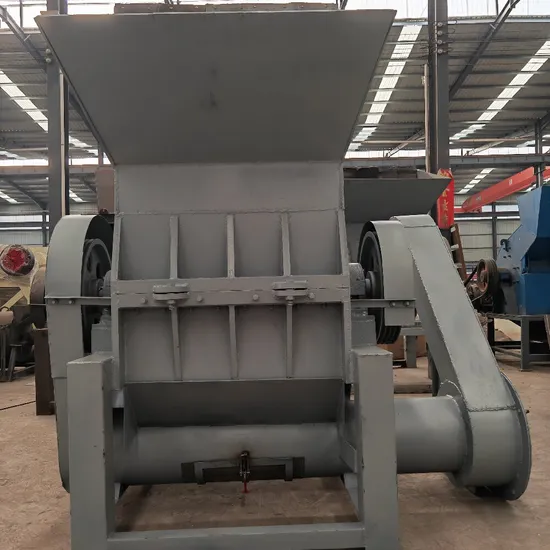

The plastic crusher adopts alloy steel blades, with long service life; At the same time, the machine adopts a separate design, which is easy to repair and clean, and has a double-layer structure. It is equipped with sound insulation materials, so the noise is very low. The cutter shaft seat has undergone strict balance tests, and is suitable for crushing various plastic plastics and rubber products, such as plastic profiles, pipes, rods, silk threads, films, and waste rubber products.
Plastic Bottle Crushing, Cleaning, and Drying Production Line Process
The recycling element mechanical sorting platform is used to sort out the bottles of different materials, enter the de labeling machine for de labeling, separate the bottle body from the label, and the plastic bottles after de labeling enter the grinder through the belt feeder. The crushed materials pass through the spiral extractor, go to the rinsing tank for sinking and floating separation, and the floating materials go to the elevator. The settling materials enter the second cleaning through the spiral angle dragon below, and the materials after being cleaned through the screw rotation are pushed forward to the dryer for drying treatment, and then the finished plastic is selected by air.
Product Parameters

Model	FSJ-400	FSJ-600	FSJ-800	FSJ-1000	FSJ-1200	FSJ-1400	FSJ-1600
Power	7.5kw	15kw	22kw	30kw	37kw	55kw	75kw
Chamber Width	420mm	620mm	820mm	1020mm	1220mm	1420mm	1620mm
Screen Size	≥1mm
Moving Blade	3-6pcs	6pcs	6pcs	6-9pcs	6-12pcs	6-12pcs	12-24pcs
Fixed Blade	2-4pcs	4pcs	4pcs	4-6pcs	4-8pcs	4-8pcs	8-16pcs
Capacity	100-500kg/h	500-800kg/h	800-1200kg/h	1000-1600kg/h	1600-2000kg/h	1800-3000kg/h	3000-6000kg/h
Weight	460kg	600kg	1000kg	1700kg	2100kg	3600kg	5300kg

Detailed Photos
Tearing&Crushing Process Flow
Crush&Rinse&Dry Process Flow
Company Profile
Henan Zhongniu Machinery Manufacturing Co., Ltd. is a high-tech enterprise specialized in the design, development, production sales, installation and after-sales service of large and medium-sized mining equipment.
The main products include: Hubei crusher, impact crusher, cone crusher, Hammer crusher, reversible crusher, hydraulic roller press new-type Sander, bar mil, energy-saving ball mil, European plate mill (European plate rough grinding) , high-pressure mill, Raymond Mill, ultra-fine mil, vibrating screen, feeder, sand washing machine, belt conveyor, etc., the company increasingly becomes the main production and export base of Sand and gravel crushing and pulverizing machinery at home and abroad.
Over the years the company has always insisted on character casting products, service to win the future for the fundamental. With scientific management method, excelsior manufacturing technology, the innovative manufacturing concept has rapidly grown into anew star of china's mining machinery, Product sales network throughout the country, some products exported to Russia, Malaysia,India, Brazil, Kazakhstan, the Middle East, Africa and other countries and regions.
We are full of vigor and confidence. We stand on the thick soil of Central Plain and look around the world. We regard quality as life users as God, and has always followed every process responsible for each product, responsible for each user quality policy, dedicated to customer service. To give me the benefit of the doubt, to give you the satisfaction.
Henan Zhongniu Machinery Manufacturing Co., Ltd.. All staff warmly welcome new and old customers to factory cooperation, visit guidance!
FAQ
Q1.How long is the warranty of your equipment? Does your company supply the spare parts?
A: One year warranty and lifetime after-sales service. Yes, we provide affordable and high-quality spare parts.

Q2.What Information should customers give us, So that we can be able to provide you suitable quotation and service?
A: What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?

Q3.Can you test our samples?Do you provide beneficiation flow chart?
A: Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.

Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
Q5. How long is your delivery time?
A:7-10 days for the stock, 15-30 days for the mass production.
Q6. What is your payment method?
A:There is a 30% deposit in T/T advance and a 70% balance before shipment.
